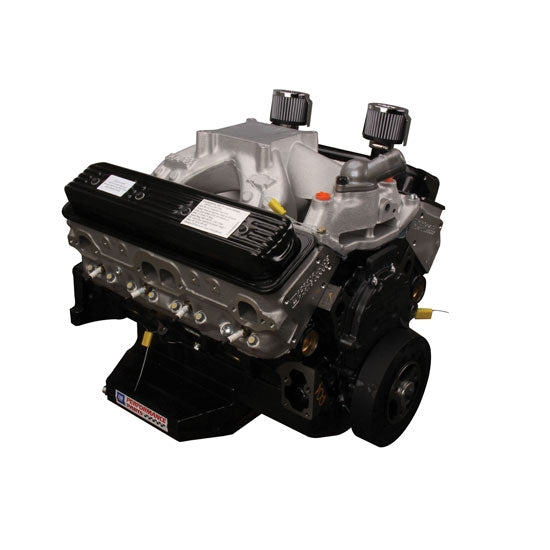

Run up front with the 400-horsepower CT400 crate engine featuring GM Fast Burn heads! GM Performance Parts' Fast Burn cylinder heads are the fast way to the winner's circle – and they're standard on the 350/400 GM racing engine (often referred to as the "604 crate") from GM Performance Parts. These IMCA-sealed 604 crate engines, formerly sold as Chevrolet Performance 88869604, are based on the popular Fast Burn 385 street crate engine, but include a racing-only 8-quart circle track oil pan with dual kick-out design, along with a valve cover breather kit and special "kool nut" rocker arm design. The assembly also includes an open-plenum high-rise intake manifold and 1.5:1-ratio aluminum roller rockers. The 604 crate engine includes a bulletproof bottom end, anchored by a forged steel crankshaft and hypereutectic pistons. The 23-degree, Fast Burn aluminum heads enable tremendous power in the small-block V-8 because of a unique chamber design that quickly and completely burns all of the air/fuel mixture – giving you maximum power. With the CT400 racing engine under the hood of your Modified or Late Model, you'll put a "fast burn" on the competition. High-revving matched components A fraction of the price of a custom engine Sealed with IMCA-issued bolts and is approved for use in IMCA Popular in Modified and Late Model classes* 400 HP @ 5500 RPM 400 ft. lbs. of torque @ 4500 RPM 4.00" x 3.48" bore x stroke 9.6:1 compression ratio 92 octane recommended fuel 4-bolt main caps Cam lift: .474" intake / .510" exhaust Cam duration @ .050": 208° intake / 221° exhaust 112° lobe separation 1.5:1 ratio aluminum roller rocker arms 2.00" Intake / 1.55" Exhaust valves Includes: Fully assembled long block Black steel valve covers w/ breathers Oil pump, pick-up, 8 quart oil pan Eliminator Vortec intake manifold Spark plugs 8" harmonic balancer Front timing cover IMCA-approved seal kit *Check track/series rules for approved applications. IMCA Approved.
Highlights
- High-revving matched components
- A fraction of the price of a custom engine
- Sealed with IMCA-issued bolts and is approved for use in IMCA
- Popular in Modified and Late Model classes*
- 400 HP @ 5500 RPM
Specifications
-
Crate Engine Type: Deluxe Crate Engine
-
Engine Displacement: 350 cu. in.
-
Horsepower: 400 horsepower
-
Compression Ratio: 9.72:1
-
Torque: 400 ft./lbs.
-
Maximum RPM: 5,800
-
Camshaft Type: Hydraulic Roller Tappet
-
Cylinder Head Material: Aluminum
-
Piston Material: Hypereutectic Aluminum
-
Crankshaft Material: Forged 4340 Steel
-
Combustion Chamber Volume: 62cc
-
Camshaft Duration (.050 in): 208° intake / 221° exhaust
-
Camshaft Lift (in): .474 intake / .510 exhaust
-
Bore x Stroke (in): 4.000" x 3.480"
-
Carburetor Included: No
-
Intake Manifold Included: Yes
-
Distributor Included: No
-
Connecting Rod Material: Powdered Metal
-
Warranty: None
-
Valve Covers Included: Yes
-
Assembled: Yes
-
Engine Balance: External
-
Cylinder Heads Included: Yes
-
Rear Main Seal Style: 1-piece
-
Throttle Body Included: No
-
Oil Pan Included: Yes
-
Timing Cover Included: Yes
-
Water Pump Included: No
-
Harmonic Balancer Included: Yes
-
Flexplate Included: No
-
Flywheel Included: No
-
Air Cleaner Included: No
-
Spark Plugs Included: Yes
-
Spark Plug Wires Included: No
-
Computer Included: No
-
Wiring Harness Included: No
-
Cylinder Head Style: Assembled
-
Intake Runner Volume: 210cc
-
Intake Valves Included: Yes
-
Intake Valve Diameter: 2"
-
Exhaust Valves Included: Yes
-
Exhaust Valve Diameter: 1.55"
-
Camshaft Included: Yes
-
Cylinder Heads: Fast Burn with LS-style Beehive Springs
-
Rocker Arms: Aluminum roller
-
Rocker Arm Ratio: 1.5:1
-
Block: 4 bolt main
-
MFG. Part #: 19419604
-
Notes: IMCA-sealed for competition
-
Sold in Quantity: Each
-
Spark Plug Style: Angle
-
Brand: Speedway Motors Racing Engines
