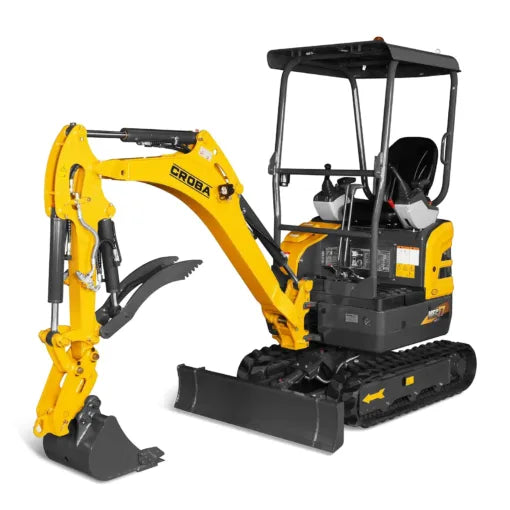

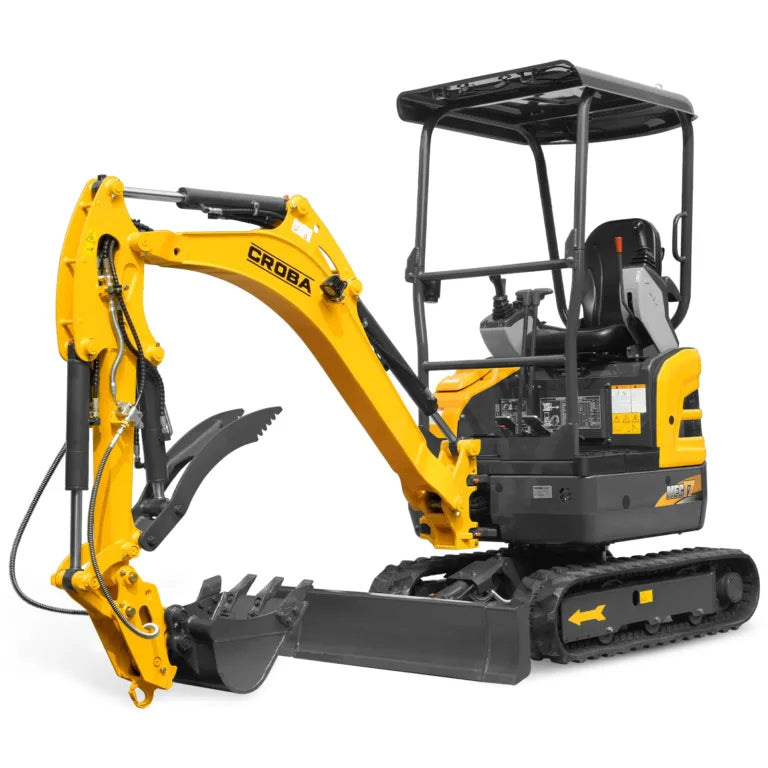

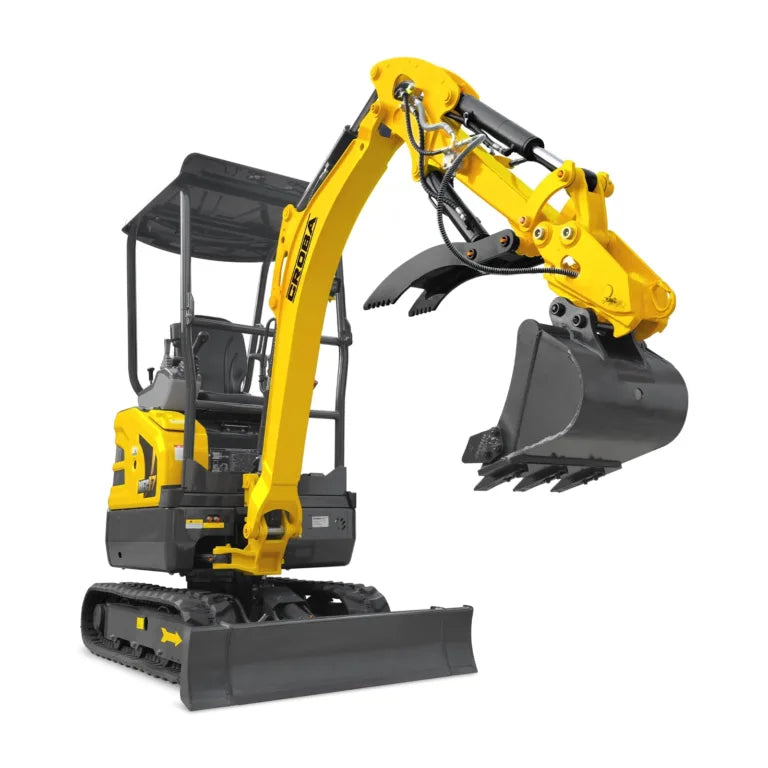

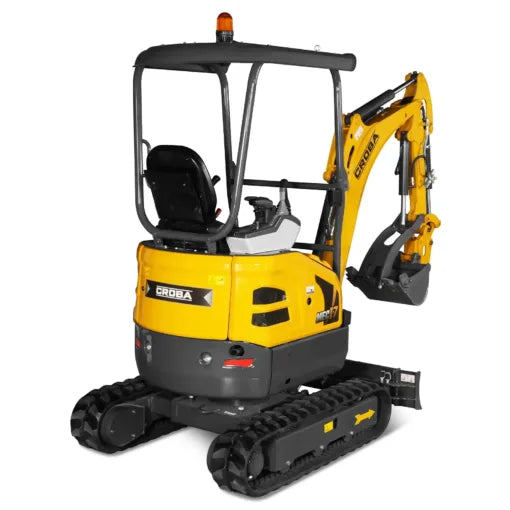

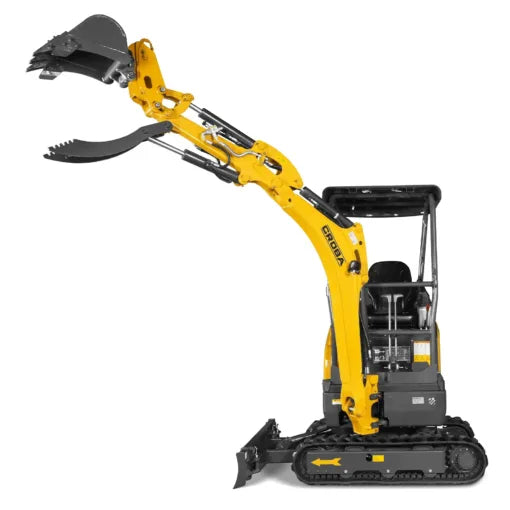

Mini Compact Excavator Kubota D902 Engine, 95″ Max. Digging Depth, 1.7 Ton, 4190 LBS Operating Weight, MEC17PRO

Mini Compact Excavator Kubota D902 Engine, 95″ Max. Digging Depth, 1.7 Ton, 4190 LBS Operating Weight, MEC17PRO

Regular price $23,890.00

Wishlist Compare

Guarantee safe checkout

Mini Compact Excavator Kubota D902 Engine, 95″ Max. Digging Depth, 1.7 Ton, 4190 LBS Operating Weight, MEC17PRO

$23,890.00

Description Material Reviews

ENGINE
Model	Kubota D902	Rated speed	2300rpm
No.Of Cylinders	3	Displacement	54.8in³
Stroke	2.9in	Engine Output – Net	15.8hp
Bore	2.83in	Warranty For Engine	2-Year or 2,000-Hour Warranty, Whichever Comes First.
TRAVEL SYSTEM
Track Roller Qty	6	Maximum Traction Force – Low Speed	4047lbf
Type of tracks	Rubber	Ground Clearance	5.7in
Travel Speed – High	2.67 mile/h	Ground Pressure	4.2psi
Travel Speed – Low	1.37 mile/h	Gradeability – Maximum	Maximum 30 degrees
WEIGHT
Operating Weight	4190lb
HYDRAULIC SYSTEM
Pump Flow at 2,300 rpm	17gpm	Auxiliary Circuit – Secondary – Flow	2.6gpm
Auxiliary Circuit – Primary – Flow	9.1gpm
SWING SYSTEM
Swing Motor	Danfoss	Swing Speed	9.5rpm
Swing Motor Type	SW2.5K	Tail Swing Radius	25.6in
DIGGING FORCE
Boom Length	72in	Bucket Digging Force	3597lbf
Arm length	43.3in	Arm Digging Force	2136lbf
REFILING CAPACITIES & LUBRICATIONS
Fuel Tank	5gal	Hydraulic Oil Tank	3.6gal
Engine Oil	1gal	System Capacity	5.7gal
BUCKET
Bucket Capacity	1.4ft³	Bucket Width	17.7in
SCOPE OF WORK
Max.Digging Height	147in	Min Turning Radius Of Working Device	57in
Max.Dumping Height	104in	Max. Lift Above Ground	11in
Max.Digging Depth	95in	Max. Drop Below Ground	7.5in
Max.Vertical Digging Depth	81in	Boom Swing – Left	65°
Max Digging Radius	160in	Boom Swing – Right	50°
Max.digging Radius At Ground Level	157in
DIMENSIONS
Overall Length	133in	Blade Height	11.8in
Ground Contact Length （Transportation）	96in	Crawler Wheel Base	48.4in
Overall Width （Retracted/Expanded)	39/51in	Shoe Width	9.1in
Overall Height（To Top Of Cab）	94.7in	Track Length	62.7in
Counter Weight Ground Clearance	18in	Track Gauge（Retracted/Expanded)	30/42in
Ground Clearance	5.7in	Track Width（Retracted/Expanded)	39/51in
Blade Width（Retracted/Expanded)	39/51in
SERVICE
Package Method	Wood Case	Warranty For Machine	1 Year
Packing Size	112.6×43.7×99.2 in	Weight (N.W./G.W.)
