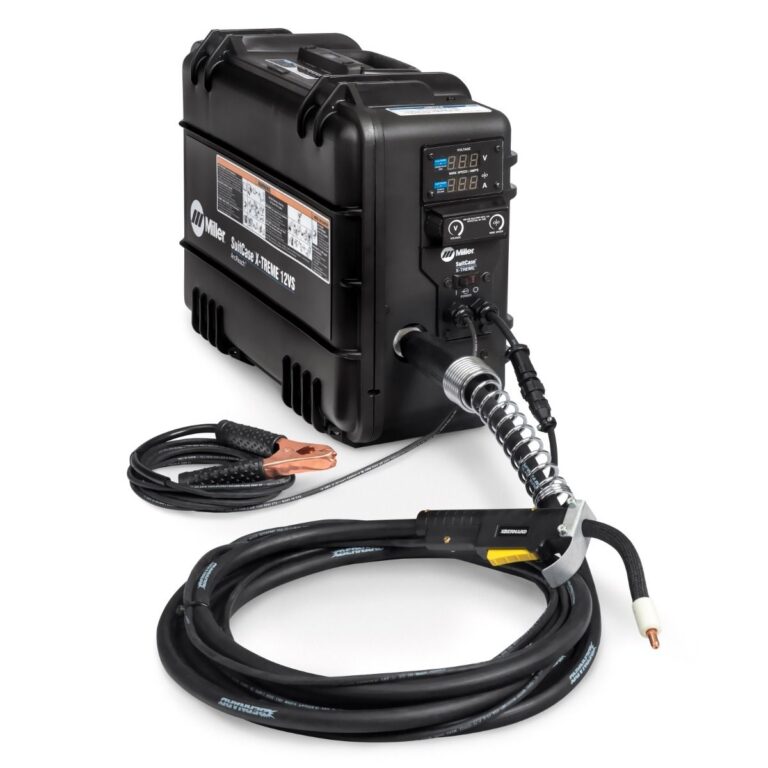

MILLER ARCREACH SUITCASE 12 W/FLUX CORED GUN (951731)

The Miller ArcReach Suitcase 12 feeder allows the operator to adjust the output voltage at the feeder, saving a trip back to the power supply – no extra control cable to purchase. ArcReach equipped power sources and wire feeders work with non-ArcReach equipment, however the complete benefits are only realized with the ArcReach system.

Suitcase X-TREME Features
• Electronic wire feed speed with control tachometer
• Digital meters with sunvision technology
• Front panel has trigger hold, wire jog, and gas purge
• Ability to change wire with feeder in upright position
• Dual schedule capable (dual schedule switch sold separately)
• Gun locking tab prevents gun from being pulled out prematurely
• Recessed gas inlet on rear of case

Quick Specs
• Input Power: 14-48 VDC operating range
• Wire Feed Speed: 50-780 ipm
• Duty Cycle: 60% @ 425A
• Wire Diameter Capacity: .023 – .052 Solid Wire | .030 – 5/64 Flux Cored
• Max Wire Diameter: 12″ or 45lb Spool
• Dims: 15.5″ H x 9″ W x 21″ D
• Weight: 35lbs

Includes
• ArcReach 12 feeder (12-Inch Spool Capacity)
• 15′ Bernard Flux-Cored Gun
• Centerfire contact tips: (3) .045 | (2) .052
• .068/.072-5/64 V-Knurled drive roll kit (Guides already installed on feeder)
