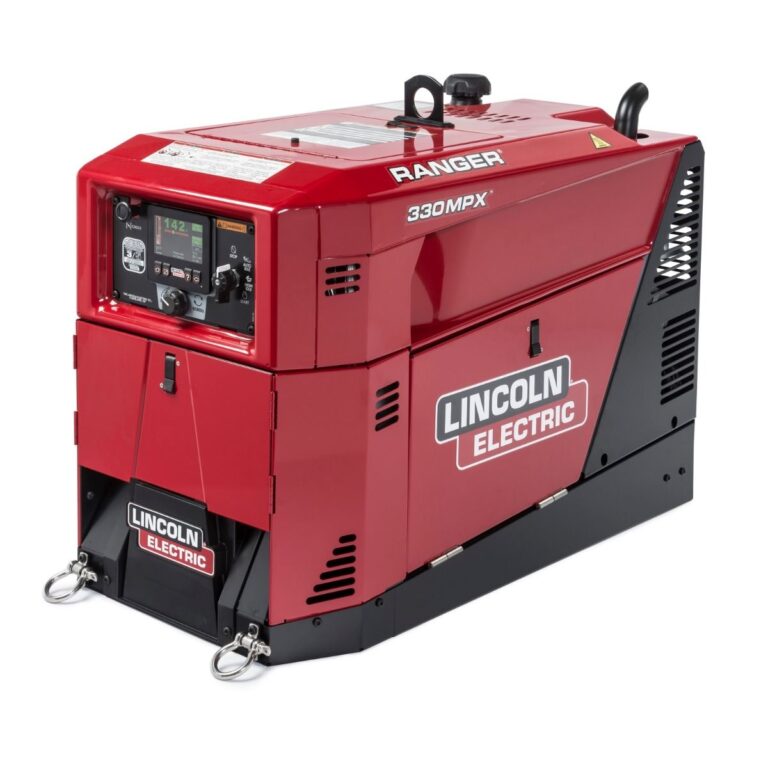

Smaller. Smarter. Quieter! The Lincoln Ranger 330MPX EFI Welder/Generator w/GFCI (K4779-1) breaks the mold of what we expect in an engine driven welder/generator. Lincoln has found a way to pack more innovative features in a smaller footprint (20% smaller footprint and 25% lighter than other machines in its class). The Lincoln Ranger 330MPX features a digital control panel for ease of use and 330 amps of output for smooth welding.
Key Features
• EFI Model – provides more reliable starts at high altitude or extreme temperatures
• Smaller Size – 20% smaller than in-class competition
• Quieter Sound – up to 60% quieter than in-class competition
• Smarter Machine – intuitive push and turn digital controls
• ArcFX Technology – provides instant graphical feedback on how settings affect the weld outcome
• Chopper Technology – provides easy starts, smooth and consistent arc, and low spatter
• CrossLinc Technology – remote technology communicates voltage control to power source through one weld cable
• Fine Tune Adjustments – for hot start, arc force, and pinch controls
• Open/Close Front Panels – protect the receptacles and weld lead connections
• Arc Gouging – up to 3/64″ carbon electrode
• 6-Pin Connector – for remote control operations or foot/hand amptrol
• First In-Class Direct Connect Spool Gun (K3569-2) – no additional control box or accessories
Advanced Features
• Enhanced Remote Control Capabilities – offer the ability to select preferred remote amperage scale without additional cables
• Lock Settings – enable the supervisor and operator passcode protection to lock settings and weld mode
• Intuitive Maintenance Indicators – oil level, air filter, spark plug, fuel filter, brushes
• New Weld Modes – downhill pipe, touch-start pulse TIG, pulse spool gun
Machine Quick Specs
• Amperage Output: 330A
• Duty Cycle: 100% @ 330A DC CC | 100% @ 312A DC CV
• Generator Output: 11,500 W Peak | 10,000 W Continuous
• Dimensions: 26″ H x 20″ W x 36″ L
• Weight: 446 lbs
Engine Quick Specs
• Engine: Kohler OHV Command CH740 Gasoline (Electric Fuel Pump)
• 2 Cyl, 4 Cycle, Air Cooled
• Horsepower: 25 HP @ 3600 RPM
• Ignition: Electric Start w/Choke
• Fuel Capacity: 11 Gallons | 2.0 Qts Oil
• Noise Level: 74.7 Decibels @ Full Load
| Brand |
Lincoln |
| SKU |
ILIN20220001 |
| MPN |
LINK4779-1 |
| Mfgs MPN |
K4779-1 |
| UPC |
15082957005 |
| Prop65 |
Yes |
| Process |
Flux Cored (FCAW), MIG, Stick, TIG |
| Phase |
Single Phase |
| Manufacturer’s Warranty |
3 Years |
| Polarity |
DC |
| Discontinued Product |
No |
