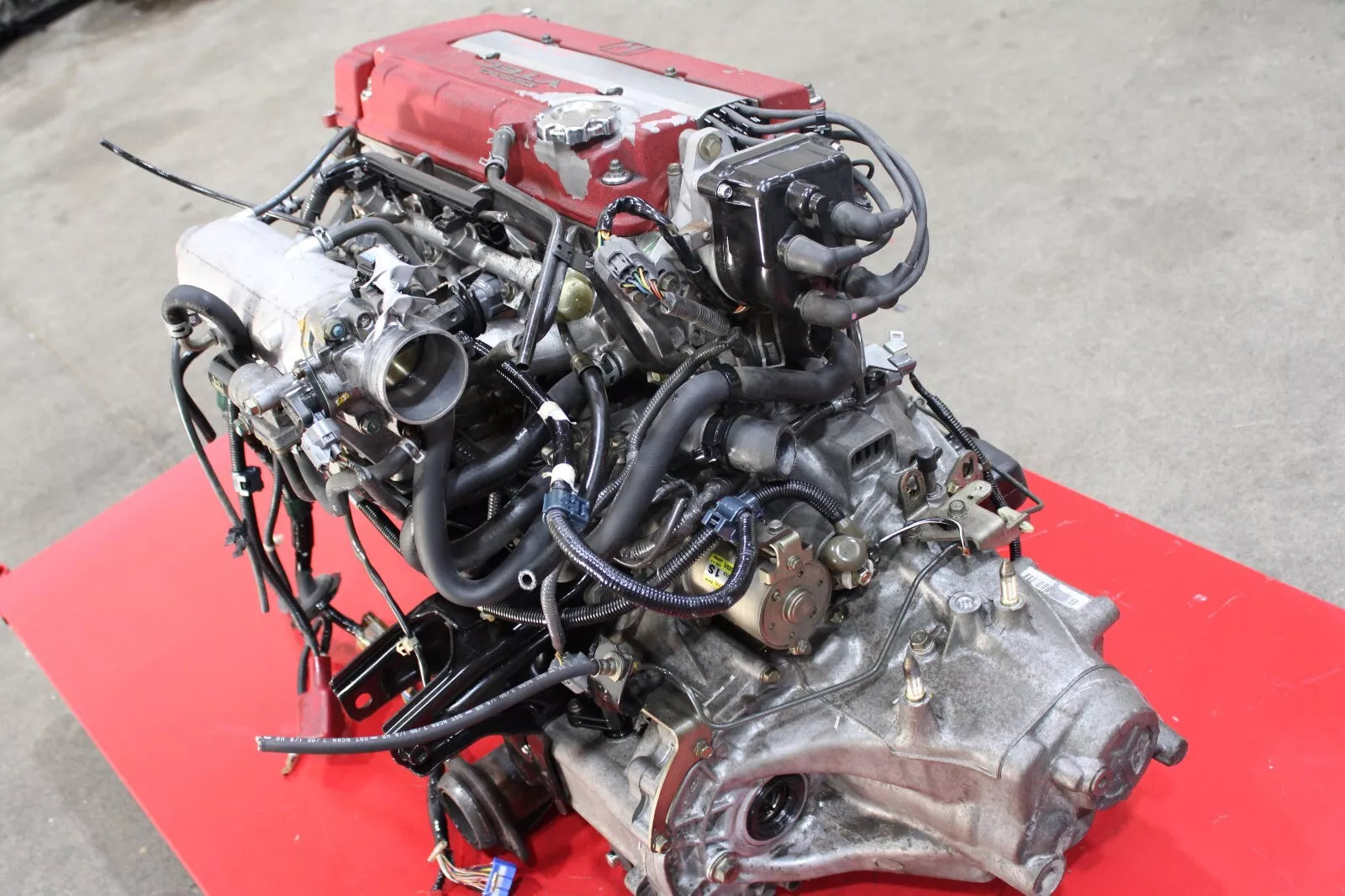

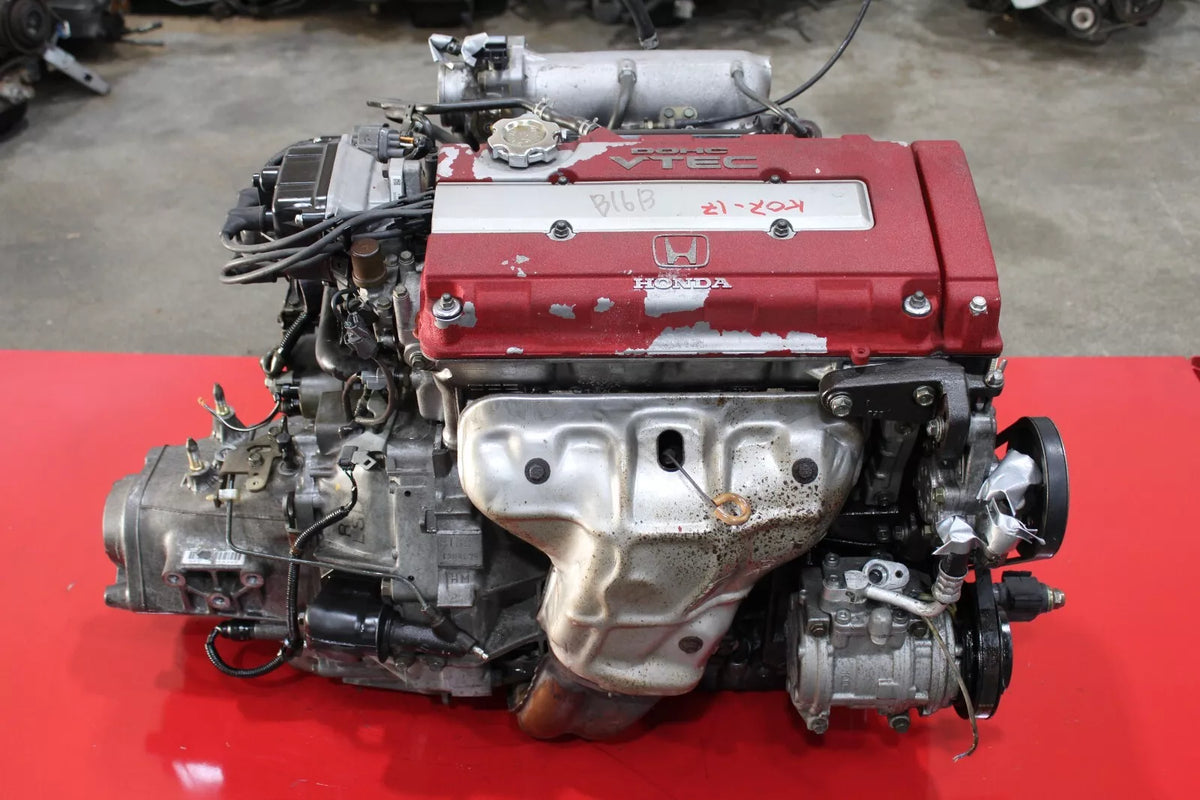

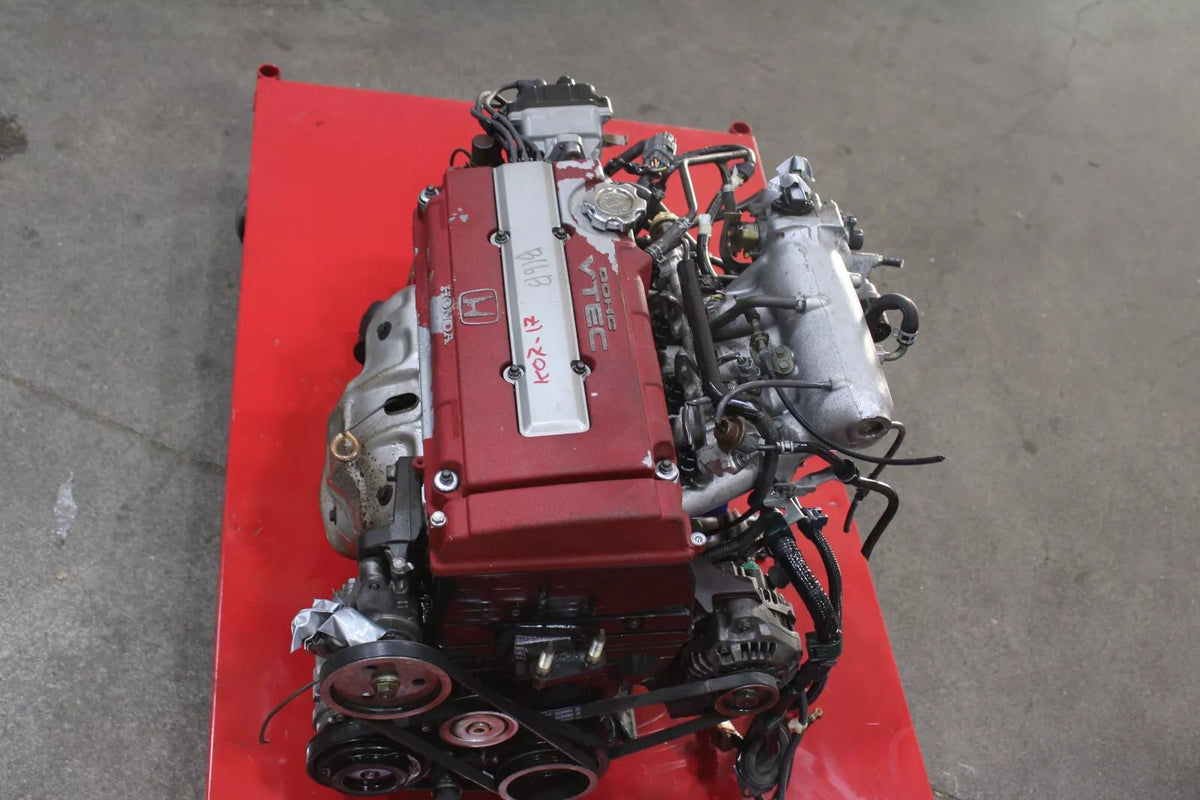

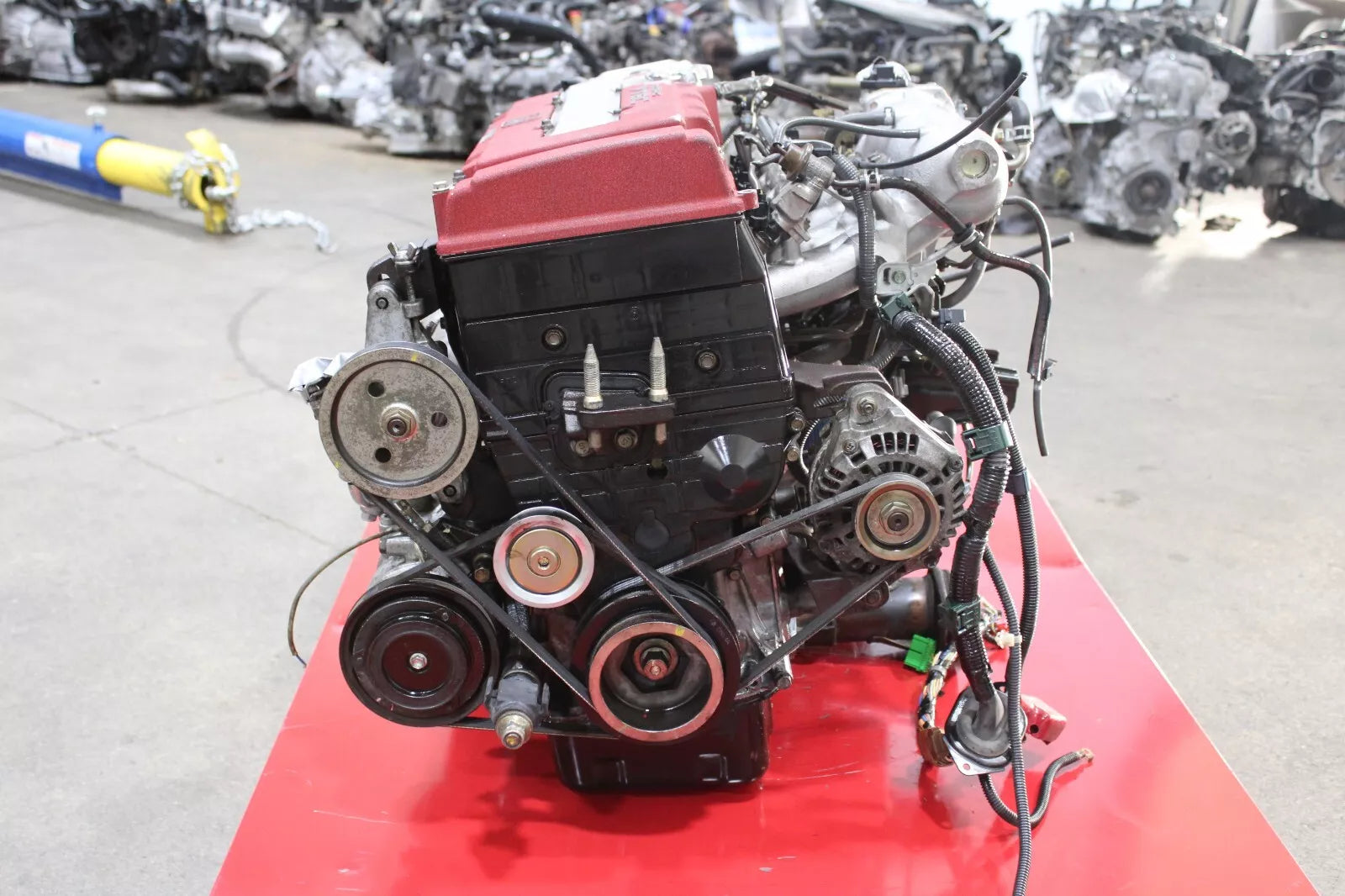

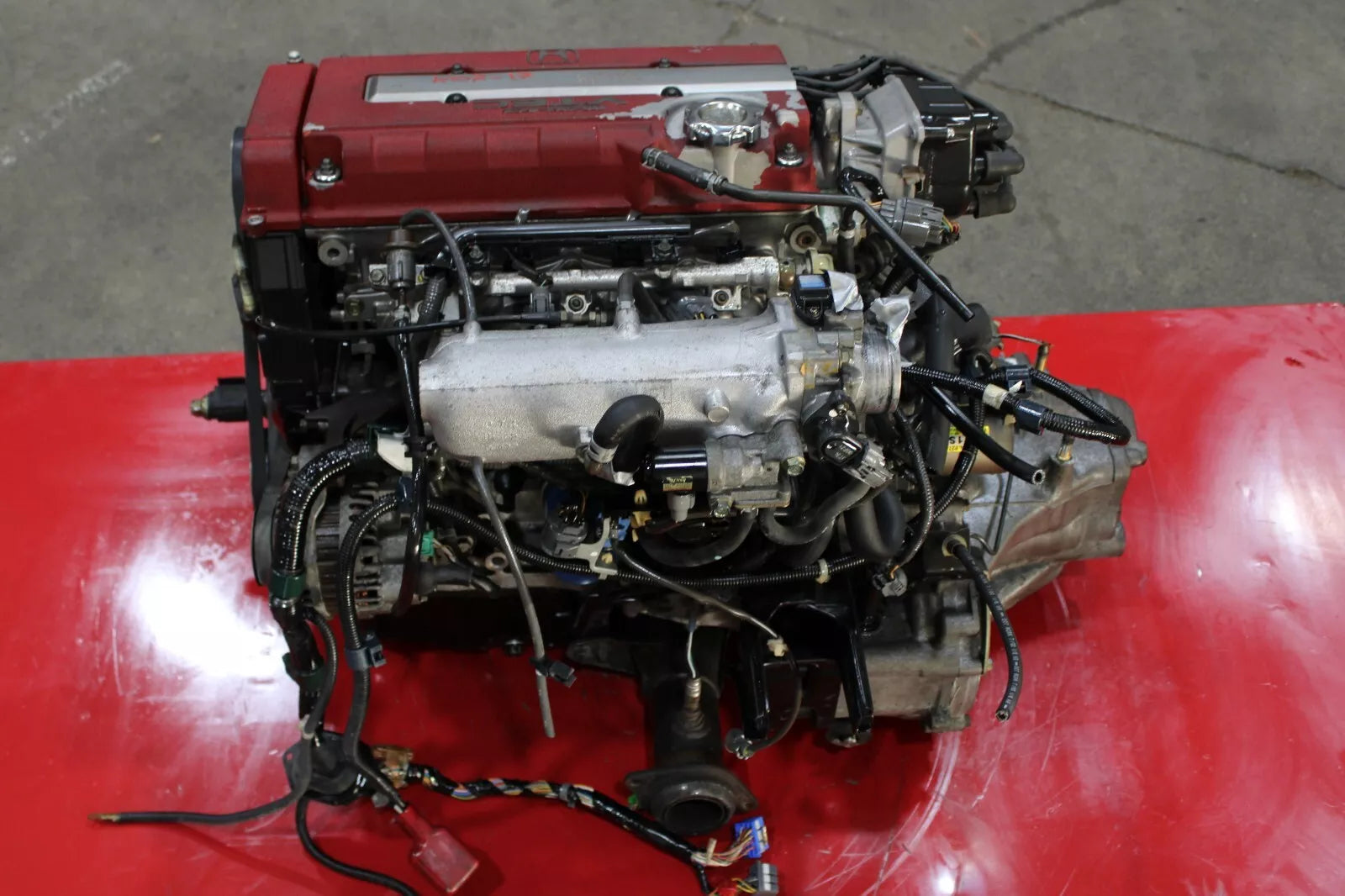

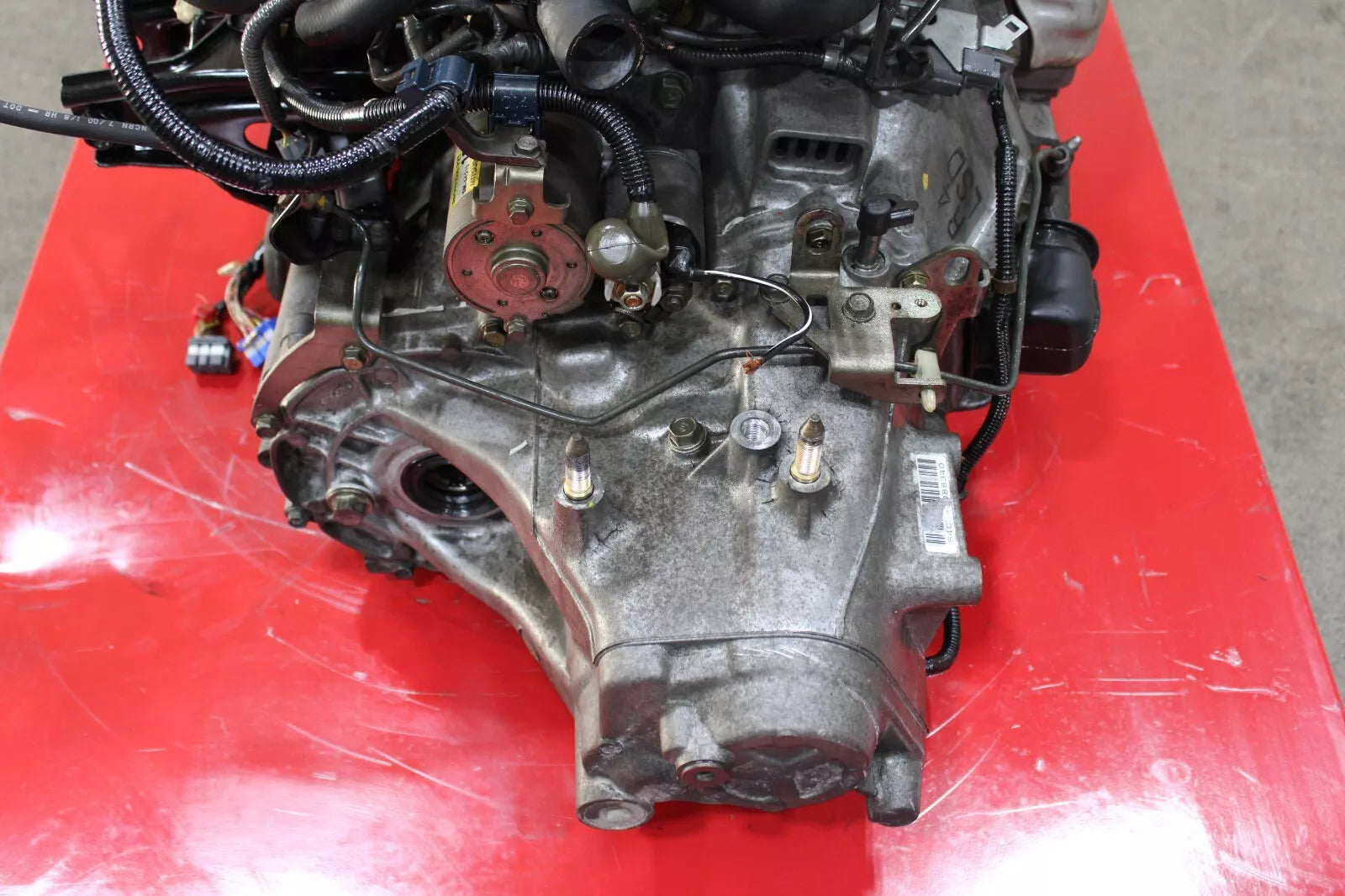

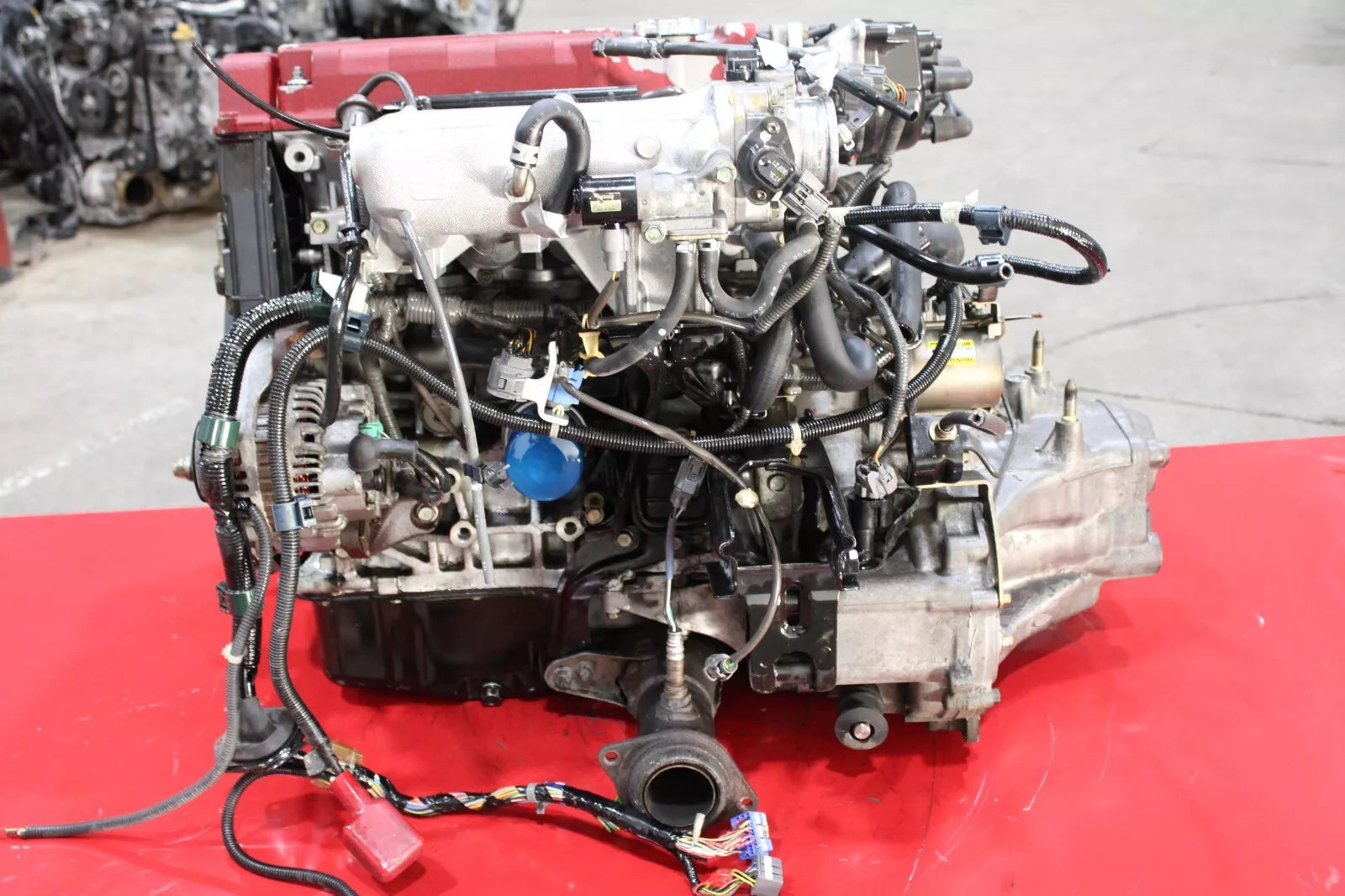

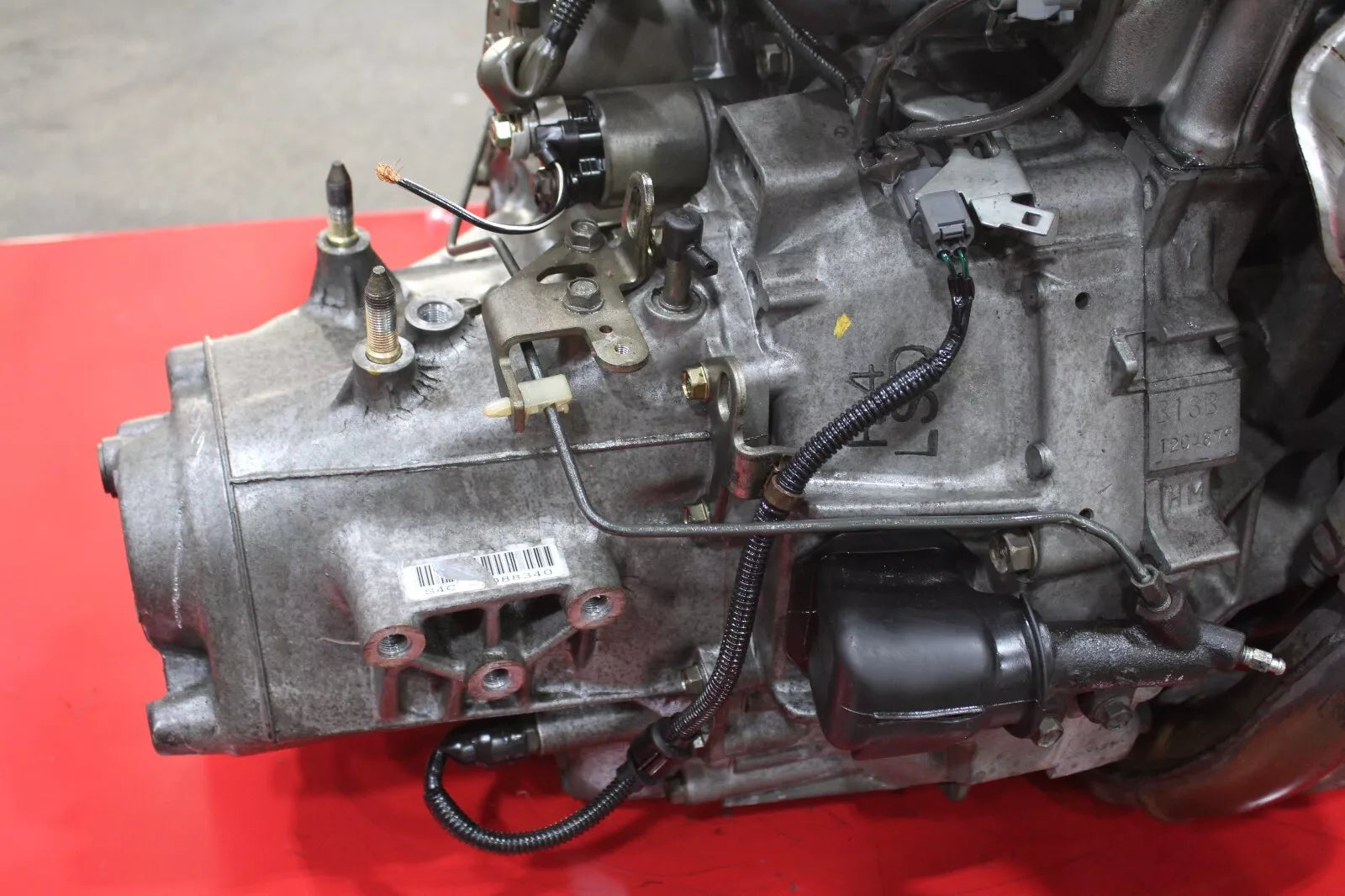

JDM Honda B16b Engine For Sale
JDM Honda B16b Engine For Sale.The robust B16B motor was specially produced for the Civic EK9 Type R. The 1595cc engine features Honda’s legendary VTEC system and is capable of revving all the way up to 8900 RPM. This reliable elongated Block B16B engine has a verified 49,893 miles on the counter. The engine produces up to 185HP and is renowned in the Honda circuit for its ability to pack a punch and box seriously above its weight class.
What you get here is a clean, top-performance JDM Honda B16B engine for sale, with CTR, LSD trans, ECU Wiring, perfect for all types of build or swap projects for Honda CIVIC, CRX, Integra, amongst others.
Parts Included In The JDM Unit
- Head & Block Engine
- Timing Components
- Intake Manifold
- Exhaust Manifold
- Fuel & Rail Injectors
- Throttle Body
- Coil Packs (Distributor)
- Alternator
- A/C
- Power Steering Pump
- Map Sensor
- TPS
- Pulleys
- Oil Pan
- Sensors
Honda B16B Engine Reference Specs
| Manufacturer |
Honda Motor Company |
| Also called |
Honda B16 |
| Initial Production |
1989-2000 |
| Cylinder block alloy |
Aluminum |
| Configuration |
Inline-4 |
| Valvetrain |
DOHC
4 valves per cylinder |
| Piston stroke, mm (inch) |
77.4 (3.05) |
| Cylinder bore, mm (inch) |
81 (3.19) |
| Compression ratio |
10.2
10.4
10.8 |
| Displacement |
1595 cc (97.3 cu in) |
| Power output |
110 kW (150 HP) at 7,600 rpm
116 kW (158 HP) at 7,800 rpm
117 kW (160 HP) at 7,600 rpm
117 kW (160 HP) at 7,600 rpm
122 kW (167 HP) at 7,800 rpm
125 kW (170 HP) at 7,800 rpm
136 kW (185 HP) at 8,200 rpm |
| Torque output |
150 Nm (110 lb·ft) at 7,100 rpm
150 Nm (110 lb·ft) at 7,000 rpm
152 Nm (112 lb·ft) at 7,000 rpm
150 Nm (110 lb·ft) at 7,500 rpm
150 Nm (110 lb·ft) at 7,300 rpm
160 Nm (118 lb·ft) at 7,300 rpm
163 Nm (120 lb·ft) at 7,500 rpm |
| Redline |
8,000 (B16A2, B16A3)
8,200 (B16A1)
8,300 (B16A5)
8,400 (B16B Type R) |
| HP per liter |
94
99
100
104
106
115 |
| Fuel type |
Gasoline |
| Weight, kg (lbs) |
183 (403) |
Fuel consumption, L/100 km (mpg)
--> City
--> Highway
--> Combined |
Honda Civic
10.2 (23)
6.4 (37)
7.6 (31) |
| Turbocharger |
Naturally aspirated |
Oil consumption, L/1000 km
(qt. per miles) |
up to 1.0
(1 qt. per 600 miles) |
| Recommended engine oil |
5W-30
5W-40
10W-30
10W-40
10W-50
15W-40
15W-50 |
| Engine oil capacity, L (qt.) |
4.0 (4.2) |
| Oil change interval, km (miles) |
5,000-10,000
(3,000-6,000) |
| Normal engine operating temperature, °C (F) |
– |
Engine lifespan, km (miles)
-Official information
-Real |
–
300,000+ (180,000) |
Tuning, HP
-Max HP
-No life span loss |
250+
– |
| The engine is installed in |
Honda Civic
Honda CRX
Honda Integra |
-
