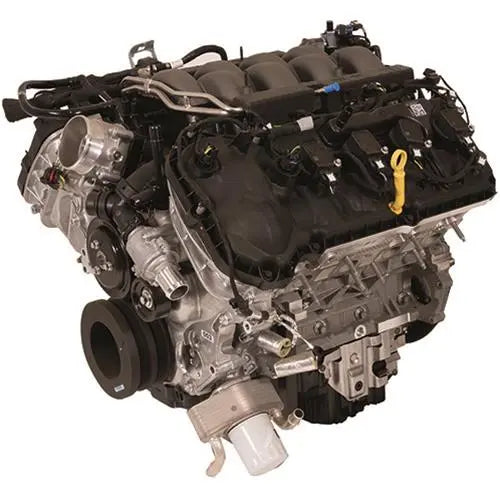

Ford Performance 2018 Gen 3 5.0L Coyote Crate Engine (M-6007-M50CAUTO) – 460 HP of High-Revving Power!

Upgrade your Mustang or Coyote swap project with the legendary 2018 Gen 3 5.0L Coyote Crate Engine!

The Ford Performance 2018 Gen 3 5.0L Coyote Long Block Crate Engine (M-6007-M50CAUTO) is engineered for high-revving, naturally aspirated power, featuring dual overhead camshafts, advanced fuel injection, and high-flow cylinder heads. Designed for street, strip, and performance driving, this engine is the perfect foundation for a high-horsepower build.

A Coyote crate engine built for modern muscle car dominance!

Requires aftermarket ECU, exhaust system, and tuning for optimal performance.

What’s Included in the Gen 3 Coyote Crate Engine?

Fully Assembled 5.0L Gen 3 Coyote Engine – Built for modern performance applications
High-Compression Rotating Assembly – Maximizes efficiency and power output
Fuel Injection System with Throttle Body – Optimized for modern fuel delivery systems
Coil-On-Plug Ignition System – Provides precise spark control and smooth high-RPM performance
Internally Balanced Crankshaft & Pistons – Delivers seamless power and reduced vibration
Flexplate for Automatic Transmissions – Ensures smooth power transfer and compatibility

EXCLUDES ECU, exhaust system, manual transmission flywheel, and fuel system components.

Technical Specifications

Feature	Details
Brand	Ford Performance Parts
Manufacturer’s Part #	M-6007-M50CAUTO
Product Type	Crate Engine
Summit Racing Part #	FMS-6007M50CAUTO
Crate Engine Family	Ford Coyote
Actual Displacement	5.0L / 302 C.I.D
Horsepower Output	460 HP
Assembled?	Yes
Engine Block Material	Aluminum
Cylinder Head Material	Aluminum
Engine Balance	Internally Balanced
Compression Ratio	12.0:1
Camshaft Type	DOHC
Rear Main Seal Style	1-Piece
Induction System	Fuel Injection
Intake Manifold Included?	Yes
Throttle Body Included?	Yes
Distributor Included?	No
Oil Pan Included?	Yes
Valve Covers Included?	Yes
Timing Cover Included?	Yes
Water Pump Included?	Yes
Harmonic Balancer Included?	Yes
Flexplate Included?	Yes (For Automatic Transmissions)
Flywheel Included?	No
Air Cleaner Included?	No
Spark Plugs Included?	Yes
Spark Plug Wires Included?	Yes
Computer Included?	No
Wiring Harness Included?	Yes
Supercharger Included?	No
Quantity	Sold Individually

Designed for maximum performance, durability, and modern muscle car swaps!
