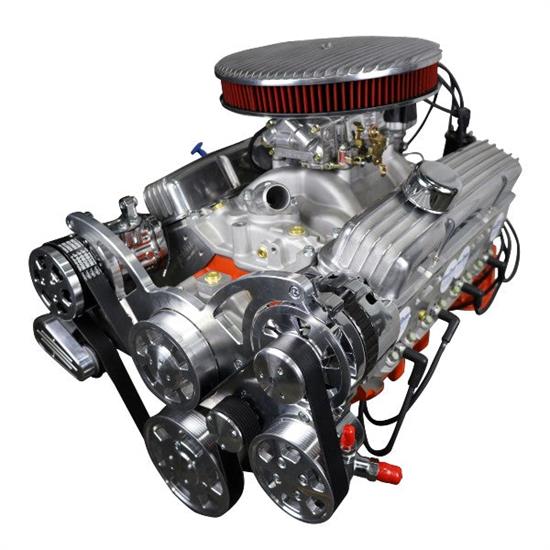

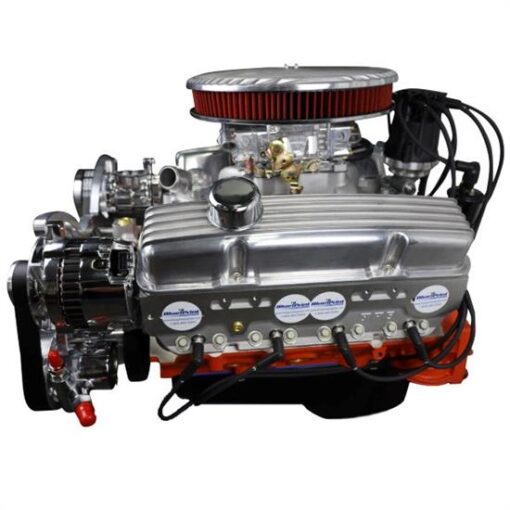

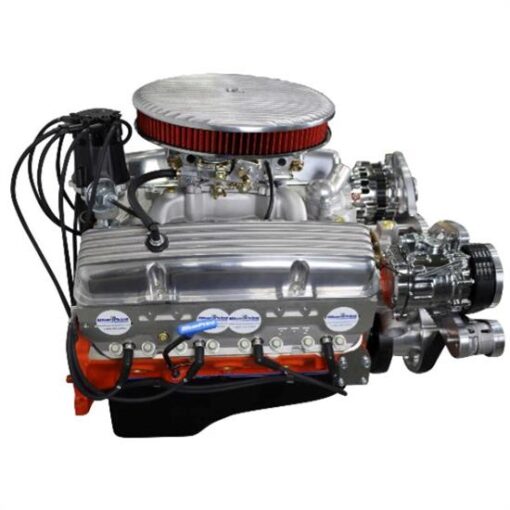

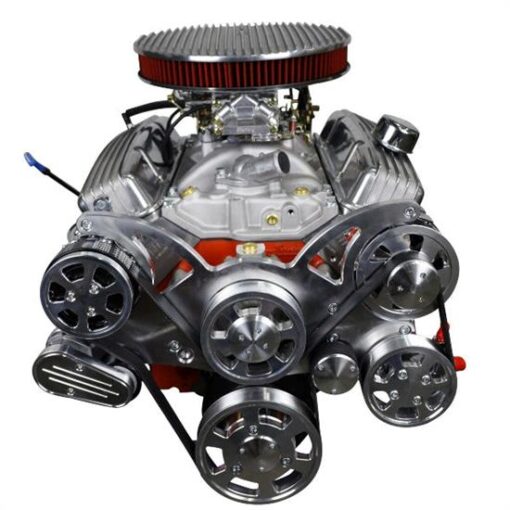

Engine Designed with small diameter harmonic balancer, Small cap Distributor, and drop base air cleaner, for vehicles with low firewall or hood clearance. BluePrint Engines Low Profile 383 CI SBC Stroker Crate Engine Dyno Tested Small Block GM Style HP and torque : 436 HP / 443 FT LBS, Compression Ratio: 10.0:1 Deluxe Dressed w/ Pulleys Longblock with Carburetor With Aluminum Heads, Hydraulic Roller Cam, Cast Steel Crank, and Hypereutectic Pistons BLOCK:NEW BluePrint Cast Iron BlockManufactured and Machined in the USA!4-Bolt Main4.000" Bore1-Piece Rear Main SealMech fuel pump provision: YesPassenger Side DipstickDrilled and tapped for clutch linkage ROTATING ASSEMBLY:New BluePrint Cast steel crankshaft3.750" StrokeOEM type 5.700" connecting rods w/ 150,000 psi boltsHypereutectic pistonsExternal Front/ External Rear CYLINDER HEADS:BluePrint Aluminum Cylinder Heads – H8002K64cc chamber2.02" intake/1.60" exhaust valves195cc intake/75cc exhaust runners CAM SPECS:Cam Type: Roller.544 Intake .555 Exhaust230 Intake / 236 Exhaust duration@ .050, 110 ° lobe separation angle IGNITION TIMING:34 Degrees Total at 3500 RPM ALSO INCLUDES:Premium Vintage Valve coversPremium Vintage Air Cleaner6.75 inch Harmonic balancerSpark plugsUnder Header Spark plug wires (Perfect for Rams Horn exhaust manifolds)Long Style Water PumpFuel Pump and feed lineOil panTiming coverAluminum Intake ManifoldSmall cap Ready to run distributor equipped with Tach Drive and coil750cfm CarburetorDyno tested and shipped with resultsFront Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump (Does not fit Corvette) See images for Dimensions WARRANTY:30 month / 50,000 mile NOTES: Not for use in pollution-controlled vehicles. Air cleaner has a maximum height of 11.5 inches when measured from block end rail (Horizontal sealing surface under the intake manifold) The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles. This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke. .
Highlights
- BluePrint Engines Low Profile 383 CI SBC Stroker Crate Engine
- Dyno Tested Small Block GM Style
- HP and torque : 436 HP / 443 FT LBS, Compression Ratio: 10.0:1
- Deluxe Dressed w/ Pulleys Longblock with Carburetor
- With Aluminum Heads, Hydraulic Roller Cam, Cast Steel Crank, and Hypereutectic Pistons
Specifications
-
Crate Engine Type: Deluxe Crate Engine
-
Engine Displacement: 383 cu. in.
-
Horsepower: 436 horsepower
-
Compression Ratio: 10.0:1
-
Torque: 443 ft./lbs.
-
Camshaft Type: Hydraulic Roller
-
Cylinder Head Material: Aluminum
-
Piston Material: Hypereutectic Aluminum
-
Crankshaft Material: Cast Steel
-
Combustion Chamber Volume: 64cc
-
Camshaft Duration (.050 in): 230° intake / 236° exhaust
-
Camshaft Lift (in): .544 intake / .555 exhaust
-
Bore x Stroke (in): 4.000" x 3.750"
-
Carburetor Included: Yes
-
Intake Manifold Included: Yes
-
Distributor Included: Yes
-
Connecting Rod Material: OEM Style
-
Valve Covers Included: Yes
-
Assembled: Yes
-
Engine Balance: External
-
Cylinder Heads Included: Yes
-
Rear Main Seal Style: 1-piece
-
Throttle Body Included: No
-
Oil Pan Included: Yes
-
Timing Cover Included: Yes
-
Water Pump Included: No
-
Harmonic Balancer Included: No
-
Flexplate Included: No
-
Flywheel Included: No
-
Air Cleaner Included: No
-
Spark Plugs Included: No
-
Spark Plug Wires Included: No
-
Computer Included: No
-
Wiring Harness Included: No
-
Cylinder Head Style: Assembled
-
Intake Runner Volume: 195cc
-
Intake Valves Included: Yes
-
Exhaust Valves Included: Yes
-
Valve Spring Included: Yes
-
Damper Spring Included: Yes
-
Retainers Included: Yes
-
Locks Included: Yes
-
Rocker Arms Included: Yes
-
Guideplates Included: Yes
-
Carburetor Quantity: One
-
Intake Gaskets Included: Yes
-
Intake Duration (.050" Lift): 230
-
Exhaust Duration (.050" Lift): 236
-
MFG. Part #: BP38318CTCKV
-
Sold in Quantity: Each
-
Brand: BluePrint Engines
