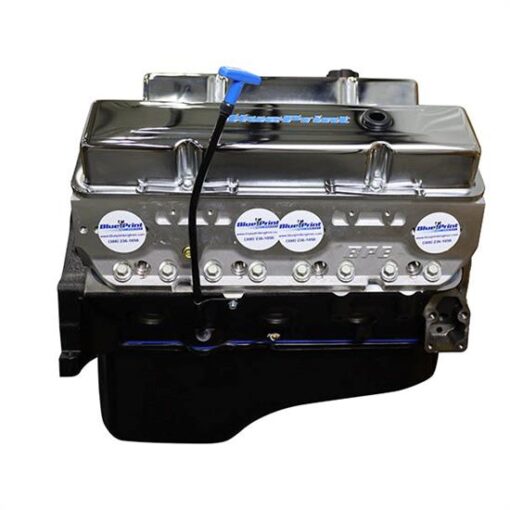

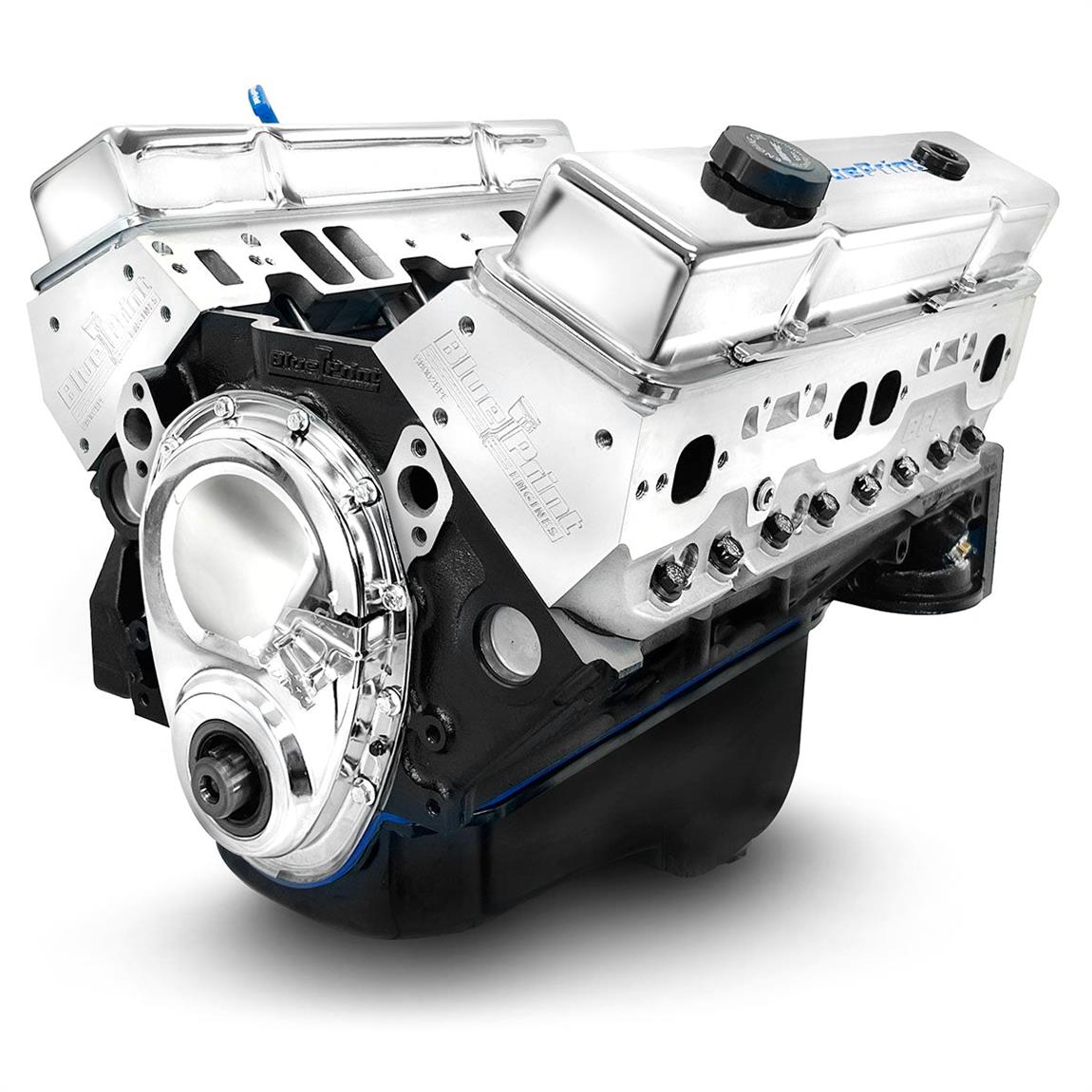

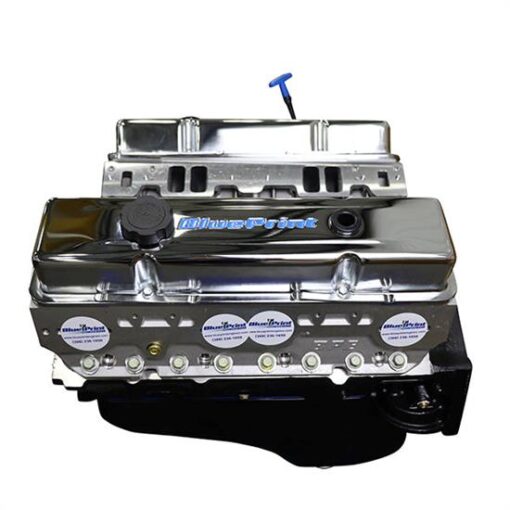

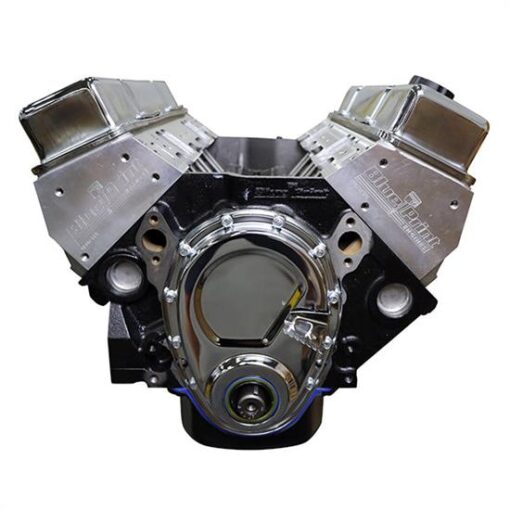

BluePrint BP3505CT 350 Crate Engine, Longblock, Alum. Heads

BluePrint Engines 350CI Crate Engine HP And Torque: 390 HP / 410 FT LBS Compression ratio: 9.2:1 Aluminum heads Hydraulic roller cam Cast iron crank Hypereutectic pistons BLOCK: NEW BluePrint cast iron block Manufactured and Machined in the USA! 4-bolt main 4.000" bore 1-Piece rear main seal Mech fuel pump provision Passenger Side Dipstick Drilled and tapped for clutch linkage ROTATING ASSEMBLY: Cast Iron Crankshaft 3.480" Stroke Forged 5.700" connecting rods Hypereutectic pistons Internal Front/ External Rear engine balance CYLINDER HEADS: BluePrint Aluminum Cylinder Heads – H8002K 64cc chamber 2.02" intake/1.60" exhaust valves 195cc intake/75cc exhaust runners CAM SPECS: Roller cam .495 Intake .502 Exhaust 220 Intake / 224 Exhaust duration @ .050 – 114 degree lobe separation IGNITION TIMING: 32 Degrees Total at 3500 RPM ALSO INCLUDES: Valve covers Oil pan Timing cover Dyno test results shipped with engine WARRANTY: 30 month / 50,000 mile

Specifications

• GTIN Code: 887753841162
• MFG. Part #: BP3505CT
• Brand: BluePrint Engines
