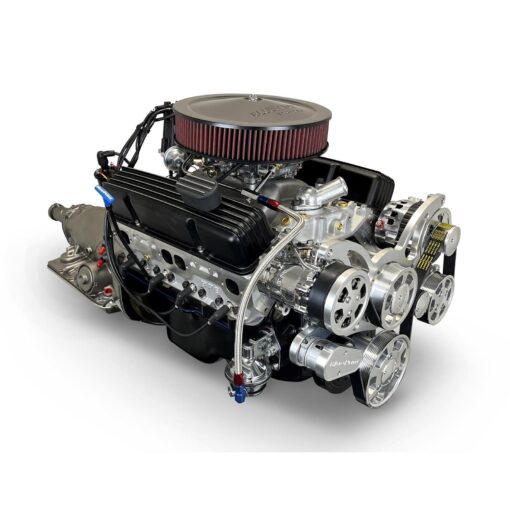

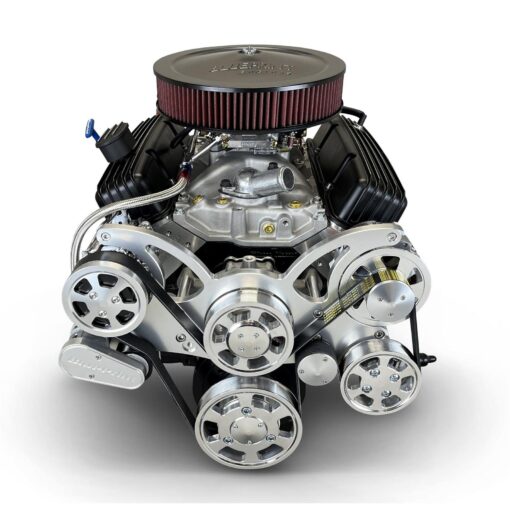

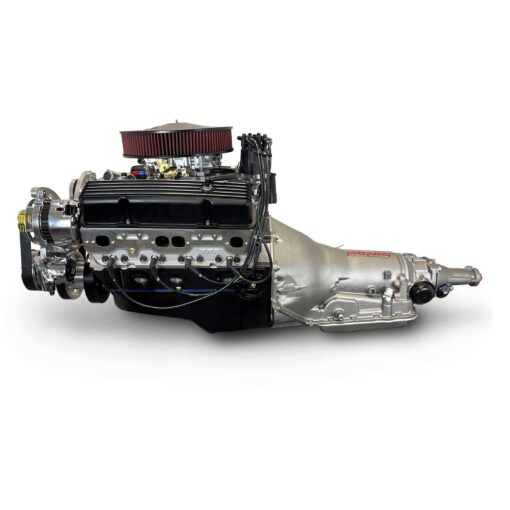

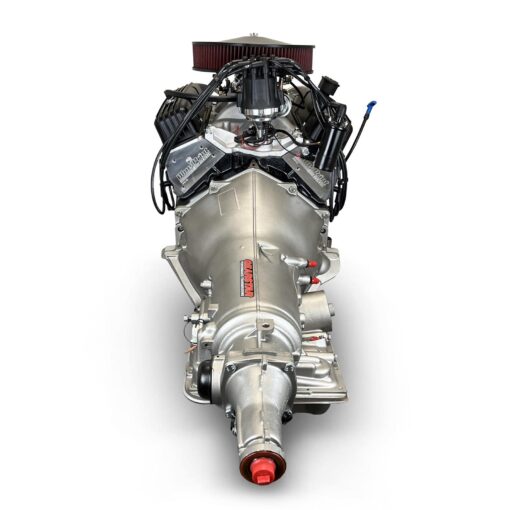

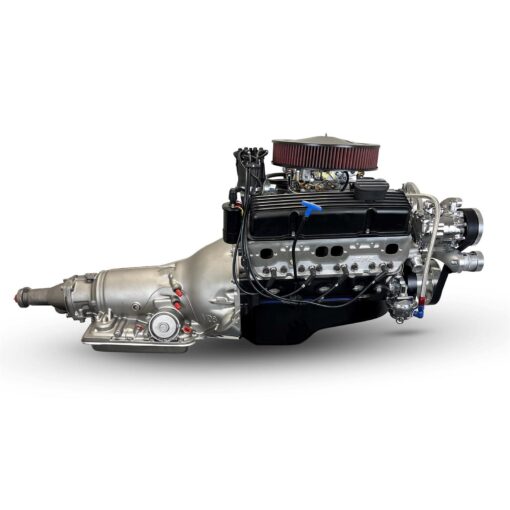

This BluePrint Builder Series 400 c.i. engine and 700R4 automatic transmission package is a high-output carbureted small block Chevy combination built for serious street performance with classic V8 character and overdrive drivability. Delivering 500 horsepower and 510 ft.-lbs. of torque, it combines forged internals, aluminum heads, a hydraulic roller cam, a Holley 750 CFM carburetor, and a polished front accessory drive with a complete 700R4 automatic transmission package for a powerful, responsive setup that offers both hard acceleration and comfortable cruising. BluePrint 400 delivers 500 horsepower and 510 ft.-lbs. of torque Polished front accessory Holley 750 CFM carburetor and dual plane intake Forged crankshaft, forged pistons, aluminum heads, and hydraulic roller cam Complete 700R4 automatic transmission package includes torque converter, flexplate, and starter Block: BluePrint Engines High Strength Cast Iron Block Drilled and Tapped for Clutch Linkage Mech Fuel Pump Provision: Yes Passenger Side Dipstick 1-Piece Rear Main Seal 4-Bolt Main 4.125" Bore Rotating Assembly: BluePrint Forged Crankshaft 3.750" Stroke Forged I Beam 5.700" Connecting Rods w/ 150,000 PSI Bolts Forged Pistons Internally Balanced Front – Externally Balanced Rear Cylinder Heads: BluePrint Aluminum Cylinder Heads – HP8103 64cc Chamber 2.08" Intake / 1.60" Exhaust Valves 220cc Intake / 67cc Exhaust Runners Cam Specs: Hydraulic Roller .555 Intake / .576 Exhaust Lift 236 Intake / 242 Exhaust Duration @ .050-110 Degree Lobe Separation Ignition Timing: 10-16° Initial and Total Timing 32-34° at 3500 RPM Also Includes: Intake Manifold Dual Plane Satin Aluminum – BPP350VINT Holley 750cfm Classic Carburetor – BPP080508S Pro Series Ready Run Distributor – BPP3503BK Thermostat Housing – BPP10108470 Mechanical Fuel Pump – BPP61073 Thermostat – BPP180TS Spark Plugs – BPP7938 Plug Wire Separators Spark Plug Wires Valve Covers Timing Cover Oil Filter Oil Pan Polished Front Accessory Drive – BPP350FDACPS4 Reverse Rotation Short Water Pump Type II Power Steering Pump Remote Power Steering Pump Reservoir 140amp 1-wire Alternator 7B10 Peanut Style Air Conditioning Compressor Assembled with Complete 700R4 Automatic Transmission Package: 700R4 Complete Package 2200-2400 Stall Torque Converter Flex Plate Starter
Highlights
- BluePrint 400 delivers 500 horsepower and 510 ft.-lbs. of torque
- Polished front accessory
- Holley 750 CFM carburetor and dual plane intake
- Forged crankshaft, forged pistons, aluminum heads, and hydraulic roller cam
- Complete 700R4 automatic transmission package includes torque converter, flexplate, and starter
Specifications
-
Engine Displacement: 400 cu. in.
-
Horsepower: 500 horsepower
-
Compression Ratio: 10.3:1
-
Camshaft Type: Hydraulic Roller Tappet
-
Cylinder Head Material: Aluminum
-
Piston Material: Forged Aluminum
-
Crankshaft Material: Forged Steel
-
Combustion Chamber Volume: 64cc
-
Camshaft Duration (.050 in): 236° intake / 242° exhaust
-
Camshaft Lift (in): .555 intake / .576 exhaust
-
Carburetor Included: Yes
-
Intake Manifold Included: Yes
-
Distributor Included: Yes
-
Connecting Rod Material: Forged Steel
-
Cylinder Heads Included: Yes
-
Oil Pan Included: Yes
-
Timing Cover Included: Yes
-
Water Pump Included: Yes
-
Harmonic Balancer Included: Yes
-
Flexplate Included: Yes
-
Air Cleaner Included: Yes
-
Spark Plugs Included: Yes
-
Spark Plug Wires Included: Yes
-
MFG. Part #: B400K700
-
Sold in Quantity: Kit
-
Brand: BluePrint Engines
Emissions Notice
Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine
