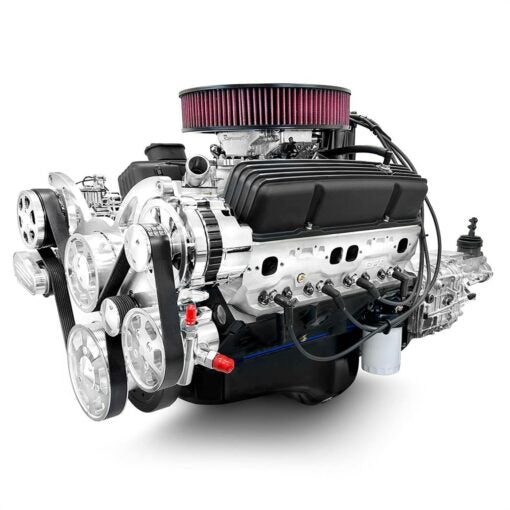

BluePrint Engines B400FK700 SBC 400/500HP with 700R4, EFI

This BluePrint Builder Series 400 c.i. engine and 700R4 automatic transmission package is a high-output small block Chevy combination built for serious street performance with modern fuel injection and overdrive convenience. Delivering 500 horsepower and 510 ft.-lbs. of torque, it combines forged internals, aluminum heads, a hydraulic roller cam, Holley Sniper 2 EFI, and a polished front accessory drive with a complete 700R4 automatic transmission package for a powerful, responsive setup that offers both hard acceleration and comfortable cruising. BluePrint 400 delivers 500 horsepower and 510 ft.-lbs. of torque Polished front accessory drive Holley Sniper 2 EFI Forged crankshaft, forged pistons, aluminum heads, and hydraulic roller cam Complete 700R4 automatic transmission package includes torque converter, flexplate, and starter Block: BluePrint Engines High Strength Cast Iron Block Drilled and Tapped for Clutch Linkage Mech Fuel Pump Provision: Yes Passenger Side Dipstick 1-Piece Rear Main Seal 4-Bolt Main 4.125" Bore Rotating Assembly: Forged Crankshaft 3.750" Stroke Forged I Beam 5.700" Connecting Rods w/ 150,000 PSI Bolts Forged Pistons Internally Balanced Front – Externally Balanced Rear Cylinder Heads: BluePrint Aluminum Cylinder Heads – HP8103 64cc Chamber 2.08" Intake / 1.60" Exhaust Valves 220cc Intake / 67cc Exhaust Runners Cam Specs: Hydraulic Roller .555 Intake / .576 Exhaust Lift 236 Intake / 242 Exhaust Duration @ .050-110 Degree Lobe Separation Ignition Timing: 10-16° Initial and Total Timing 32-34° at 3500 RPM Also Includes: Intake Manifold Dual Plane, Satin Aluminum – BPP350VINT Pro Series Ready Run Distributor – BPP3503BK Holley Sniper 2 EFI System – BPP550-510-3XX Thermostat Housing – BPP10108470 EFI Fuel Pump Kit – BPP5267 Thermostat – BPP180TS Spark Plugs – BPP7938 Plug Wire Separators Spark Plug Wires Timing Cover Valve Covers Oil Filter Oil pan Polished Front Accessory Drive – BPP350FDACPS4 Reverse Rotation Short Water Pump Type II Power Steering Pump Remote Power Steering Pump Reservoir 140amp 1-wire Alternator 7B10 Peanut Style Air Conditioning Compressor Assembled with Complete 700R4 Automatic Transmission Package: 700R4 Complete Package 2200-2400 Stall Torque Converter Flex Plate Starter

Highlights

• BluePrint 400 delivers 500 horsepower and 510 ft.-lbs. of torque
• Polished front accessory drive
• Holley Sniper 2 EFI
• Forged crankshaft, forged pistons, aluminum heads, and hydraulic roller cam
• Complete 700R4 automatic transmission package includes torque converter, flexplate, and starter

Specifications

• Engine Displacement: 400 cu. in.
• Horsepower: 500 horsepower
• Compression Ratio: 10.3:1
• Camshaft Type: Hydraulic Roller Tappet
• Cylinder Head Material: Aluminum
• Piston Material: Forged Aluminum
• Crankshaft Material: Forged Steel
• Combustion Chamber Volume: 64cc
• Camshaft Duration (.050 in): 236° intake / 242° exhaust
• Camshaft Lift (in): .555 intake / .576 exhaust
• Intake Manifold Included: Yes
• Distributor Included: Yes
• Connecting Rod Material: Forged Steel
• Cylinder Heads Included: Yes
• Throttle Body Included: Yes
• Oil Pan Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: Yes
• Harmonic Balancer Included: Yes
• Flywheel Included: Yes
• Air Cleaner Included: Yes
• Spark Plugs Included: Yes
• Spark Plug Wires Included: Yes
• MFG. Part #: B400FK700
• Sold in Quantity: Kit
• Brand: BluePrint Engines
