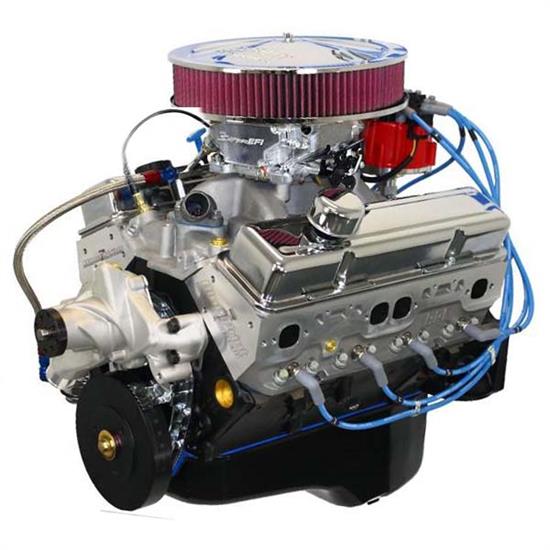

BluePrint Engines 383 CI Stroker Crate Engine Dyno Tested Small Block GM Style HP and torque : 436 HP / 443 FT LBS, Compression Ratio: 10.0:1 Deluxe Dressed Longblock with Fuel Injection With Aluminum Heads, Hydraulic Roller Cam, Cast Steel Crank, and Hypereutectic Pistons BLOCK:NEW BluePrint Cast Iron BlockManufactured and Machined in the USA!4-Bolt Main4.000" Bore1-Piece Rear Main SealMech fuel pump provision: YesPassenger Side DipstickDrilled and tapped for clutch linkage ROTATING ASSEMBLY:New BluePrint Cast steel crankshaft3.750" StrokeOEM type 5.700" connecting rods w/ 150,000 psi boltsHypereutectic pistonsExternal Front/ External Rear CYLINDER HEADS:BluePrint Aluminum Cylinder Heads – H8002K64cc chamber2.02" intake/1.60" exhaust valves195cc intake/75cc exhaust runners CAM SPECS:Cam Type: Roller.544 Intake .555 Exhaust230 Intake / 236 Exhaust duration@ .050, 110 ° lobe separation angle IGNITION TIMING:34 Degrees Total at 3500 RPM ALSO INCLUDES:Holley Sniper EFIValve coversHarmonic balancerSpark plugsSpark plug wiresStandard Rotation Long Style Water PumpOil panTiming coverAluminum Intake Manifold *Will not clear a stock Corvette hood. Please call for special build optionsHEI distributorDyno tested and shipped with results WARRANTY:30 month / 50,000 mile NOTES:Not for use in pollution controlled vehicles. This engine features a true 4 inch bore, which mathematically yields 377 CID with a 3.75 inch stroke.
Highlights
- BluePrint Engines 383 CI Stroker Crate Engine
- Dyno Tested Small Block GM Style
- HP and torque : 436 HP / 443 FT LBS, Compression Ratio: 10.0:1
- Deluxe Dressed Longblock with Fuel Injection
- With Aluminum Heads, Hydraulic Roller Cam, Cast Steel Crank, and Hypereutectic Pistons
Specifications
-
Crate Engine Type: Long Block
-
Engine Displacement: 383 cu. in.
-
Horsepower: 436 horsepower
-
Compression Ratio: 10.0:1
-
Torque: 443 ft./lbs.
-
Camshaft Type: Hydraulic Roller
-
Cylinder Head Material: Aluminum
-
Piston Material: Hypereutectic Aluminum
-
Camshaft Duration (.050 in): 230° intake / 236° exhaust
-
Camshaft Lift (in): .544 intake / .555 exhaust
-
Intake Manifold Included: Yes
-
Distributor Included: Yes
-
Valve Covers Included: Yes
-
Assembled: Yes
-
Engine Balance: External
-
Cylinder Heads Included: Yes
-
Rear Main Seal Style: 1-piece
-
Throttle Body Included: Yes
-
Oil Pan Included: Yes
-
Timing Cover Included: Yes
-
Water Pump Included: Yes
-
Harmonic Balancer Included: Yes
-
Spark Plugs Included: Yes
-
Spark Plug Wires Included: Yes
-
Computer Included: No
-
Wiring Harness Included: No
-
Cylinder Head Style: Assembled
-
Intake Valves Included: Yes
-
Exhaust Valves Included: Yes
-
Valve Spring Included: Yes
-
Retainers Included: Yes
-
Rocker Arm Studs Included: Yes
-
Rocker Arms Included: Yes
-
Guideplates Included: Yes
-
Valve Guides Included: Yes
-
Head Gaskets Included: Yes
-
Intake Gaskets Included: Yes
-
MFG. Part #: BP38318CTFD
-
Sold in Quantity: Each
-
Brand: BluePrint Engines
