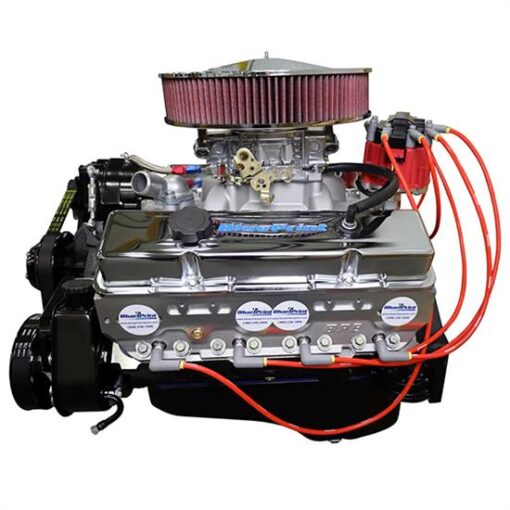

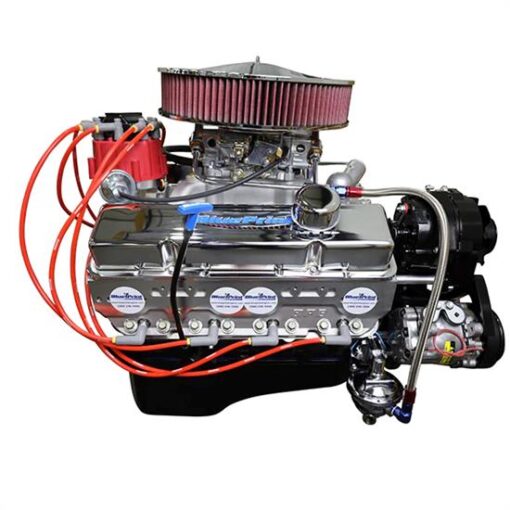

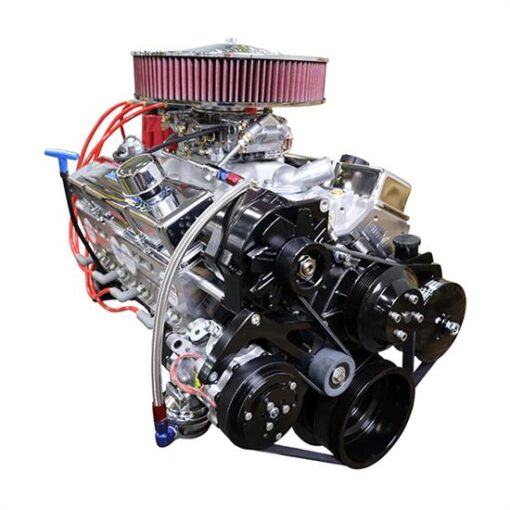

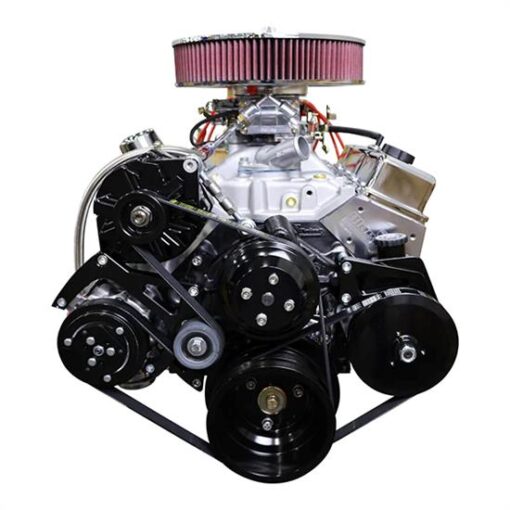

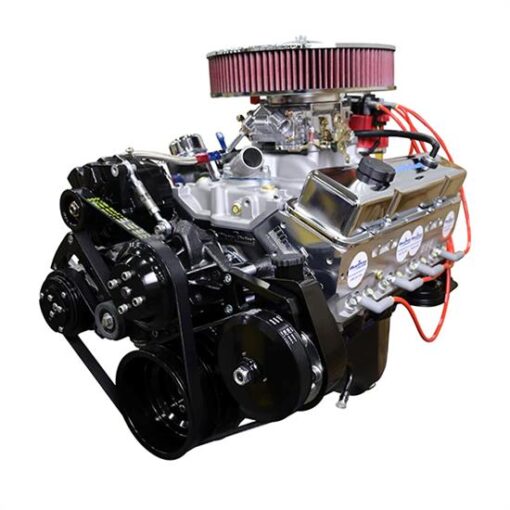

BluePrint BP38318CTC1DK 383 Crate Engine, Deluxe Dressed, Carb

BluePrint Engines 383 CI Stroker Crate Engine Dyno Tested Small Block GM Style HP and torque : 436 HP / 443 FT LBS, Compression Ratio: 10.0:1 Deluxe Dressed w/ Pulleys Longblock with Carburetor With Aluminum Heads, Hydraulic Roller Cam, Cast Steel Crank, and Hypereutectic Pistons BLOCK:NEW BluePrint Cast Iron BlockManufactured and Machined in the USA!4-Bolt Main4.000" Bore1-Piece Rear Main SealMech fuel pump provision: YesPassenger Side DipstickDrilled and tapped for clutch linkage ROTATING ASSEMBLY:New BluePrint Cast steel crankshaft3.750" StrokeOEM type 5.700" connecting rods w/ 150,000 psi boltsHypereutectic pistonsExternal Front/ External Rear CYLINDER HEADS:BluePrint Aluminum Cylinder Heads – H8002K64cc chamber2.02" intake/1.60" exhaust valves195cc intake/75cc exhaust runners CAM SPECS:Cam Type: Roller.544 Intake .555 Exhaust230 Intake / 236 Exhaust duration@ .050, 110 ° lobe separation angle IGNITION TIMING:34 Degrees Total at 3500 RPM ALSO INCLUDES:Valve coversHarmonic balancerSpark plugsSpark plug wiresLong Style Water PumpFuel PumpOil panTiming coverAluminum Intake ManifoldHEI distributor750cfm CarburetorDyno tested and shipped with resultsFront Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump (Does not fit Corvette) WARRANTY:30 month / 50,000 mile NOTES: Not for use in pollution controlled vehicles. This engine features a true 4 inch bore, which mathematically yields 377 CID with a 3.75 inch stroke .

Highlights

• BluePrint Engines 383 CI Stroker Crate Engin
• Dyno Tested Small Block GM Style
• HP and torque : 436 HP / 443 FT LBS, Compression Ratio: 10.0:1
• Deluxe Dressed w/ Pulleys Longblock with Carburetor

Specifications

• Crate Engine Type: Deluxe Crate Engine
• Engine Displacement: 383 cu. in.
• Horsepower: 436 horsepower
• Compression Ratio: 10.0:1
• Torque: 443 ft./lbs.
• Camshaft Type: Hydraulic Roller Tappet
• Cylinder Head Material: Aluminum
• Piston Material: Hypereutectic Aluminum
• Crankshaft Material: Cast Steel
• Combustion Chamber Volume: 64cc
• Camshaft Duration (.050 in): 220° intake / 224 ° exhaust
• Camshaft Lift (in): .528 intake / .536 exhaust
• Bore x Stroke (in): 4.040" x 3.750"
• Carburetor Included: No
• Intake Manifold Included: No
• Distributor Included: No
• Connecting Rod Material: OEM Style
• Valve Covers Included: Yes
• Assembled: Yes
• Engine Balance: External
• Cylinder Heads Included: Yes
• Rear Main Seal Style: 1-piece
• Throttle Body Included: No
• Oil Pan Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: No
• Harmonic Balancer Included: No
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: No
• Spark Plugs Included: No
• Spark Plug Wires Included: No
• Computer Included: No
• Wiring Harness Included: No
• Cylinder Head Style: Assembled
• Intake Valves Included: Yes
• Exhaust Valves Included: Yes
• Valve Spring Included: Yes
• Retainers Included: Yes
• Locks Included: Yes
• Rocker Arms Included: Yes
• Head Gaskets Included: Yes
• Carburetor Quantity: One
• Intake Gaskets Included: Yes
• Camshaft Included: Yes
• Intake Duration (.050" Lift): 230
• Exhaust Duration (.050" Lift): 236
• MFG. Part #: BP38318CTC1DK
• Sold in Quantity: Each
• Brand: BluePrint Engines
