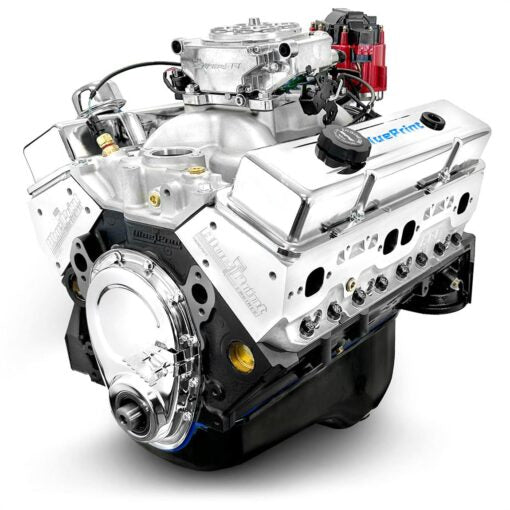

BluePrint Engines New Block Casting 350 CI Cruiser Crate Engine Dyno Tested Small Block GM Style Fuel Injection Base Dressed Longblock HP and torque : 341 HP / 371 FT LBS, Compression Ratio: 9:2:1 Aluminum Heads, Hydraulic Roller Cam, Cast Iron Crank, and Hypereutectic Pistons BLOCK:NEW BluePrint Cast Iron BlockManufactured and Machined in the USA!4-Bolt Main4.000" Bore1-Piece Rear Main SealMech fuel pump provision: YesPassenger Side DipstickDrilled and tapped for clutch linkage ROTATING ASSEMBLY:Cast Iron Crankshaft3.480" StrokeForged 5.700" connecting rodsHypereutectic pistonsInternal Front/ External Rear engine balance CYLINDER HEADS:BluePrint Aluminum Cylinder Heads – H8002K64cc chamber2.02" intake/1.60" exhaust valves195cc intake/75cc exhaust runners CAM SPECS:Cam Type: Roller.477 Intake .471 Exhaust202 Intake / 212 Exhaust duration@ .050 – 115 degree lobe separation IGNITION TIMING:32 Degrees Total at 3500 RPM ALSO INCLUDES:Valve coversOil panTiming coverAluminum intakeHEI distributorEFI systemDyno test results shipped with engine WARRANTY:30 month / 50,000 mile NOTES: This engine is an excellent cruiser and daily driver engine. This engine makes up to 18 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel.
Highlights
- BluePrint Engines New Block Casting 350 CI Cruiser Crate Engine
- Dyno Tested Small Block GM Style
- Fuel Injection Base Dressed Longblock
- HP and torque : 341 HP / 371 FT LBS, Compression Ratio: 9:2:1
- Aluminum Heads, Hydraulic Roller Cam, Cast Iron Crank, and Hypereutectic Pistons
Specifications
-
Crate Engine Type: Connect and Cruise
-
Engine Displacement: 350 cu. in.
-
Horsepower: 341 horsepower
-
Compression Ratio: 9.2:1
-
Torque: 371 ft./lbs.
-
Camshaft Type: Hydraulic Roller
-
Cylinder Head Material: Aluminum
-
Piston Material: Hypereutectic Aluminum
-
Crankshaft Material: Cast Iron
-
Combustion Chamber Volume: 64cc
-
Camshaft Duration (.050 in): 202° intake / 212° exhaust
-
Camshaft Lift (in): .477 intake / .471 exhaust
-
Bore x Stroke (in): 4.000" x 3.480"
-
Carburetor Included: Yes
-
Intake Manifold Included: Yes
-
Distributor Included: Yes
-
Valve Covers Included: Yes
-
Assembled: Yes
-
Engine Balance: Internal
-
Cylinder Heads Included: Yes
-
Rear Main Seal Style: 1-piece
-
Throttle Body Included: No
-
Oil Pan Included: Yes
-
Timing Cover Included: Yes
-
Water Pump Included: No
-
Harmonic Balancer Included: Yes
-
Flexplate Included: No
-
Flywheel Included: No
-
Air Cleaner Included: No
-
Spark Plugs Included: Yes
-
Spark Plug Wires Included: Yes
-
Computer Included: No
-
Wiring Harness Included: No
-
Cylinder Head Style: Assembled
-
Intake Valves Included: Yes
-
Exhaust Valves Included: Yes
-
Valve Spring Included: Yes
-
Retainers Included: Yes
-
Head Gaskets Included: Yes
-
Intake Gaskets Included: Yes
-
Camshaft Included: Yes
-
MFG. Part #: BP350CTF
-
GTIN Code: 887753800732
-
Sold in Quantity: Each
-
Brand: BluePrint Engines
