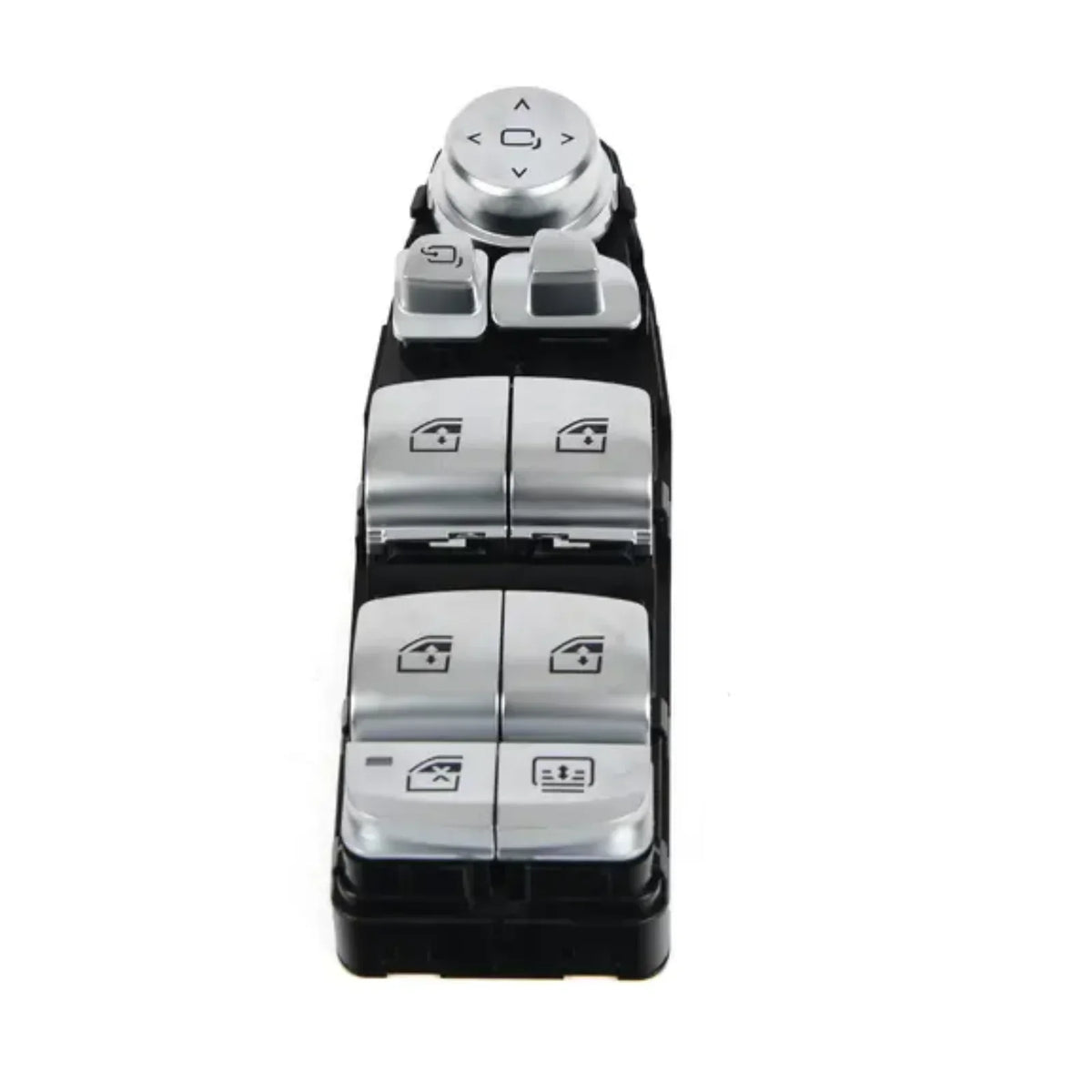

The Driver Side Master Window Switch is the primary control interface for the vehicle's window and mirror systems. Located on the driver's door armrest, this master unit allows for the individual and simultaneous operation of all four power windows, as well as the rear window safety lock. This specific version features the 6-pin electrical connector configuration, which is common in vehicles with standard power folding or non-folding mirror setups.
Over time, the internal tactile micro-switches or the plastic rocker pivots can fail due to frequent use, moisture ingress, or dust accumulation. This results in windows that "stutter," fail to roll up/down, or a loss of the "one-touch" express function. This replacement unit is engineered with high-conductivity contact points and reinforced plastic rockers to restore a crisp, tactile response and reliable electrical communication with the Window Regulator Motors.
Vehicle Compatibility: This master switch is a high-versatility component used across a wide range of BMW F-chassis models:
-
1 Series (F20/F21): 2011–2019
-
2 Series (F22/F23): 2014–2021
-
3 Series (F30/F31/F34 GT): 2012–2019
-
4 Series (F32/F33/F36 Gran Coupé): 2014–2020
-
5 Series (F10/F11/F07 GT): 2010–2017
-
X Series (X3 F25 / X4 F26 / X5 F15 / X6 F16): 2011–2018
Key Features:
-
Complete Mastery: Full control over all four door windows and the child-safety lockout feature.
-
OEM Tactile Feel: Designed to match the factory-spec "click" and resistance of the original BMW switches.
-
Backlit Illumination: Features integrated amber LED lighting that matches the rest of the BMW interior cockpit glow.
-
Direct Plug-and-Play: Uses the factory 6-pin harness for an immediate electrical connection without coding.
Specifications:
-
Placement: Driver Side Door (Front Left)
-
Connector: 6-Pin Configuration
-
Material: High-Impact ABS / Polycarbonate
-
Finish: Matte Black
-
Condition: Brand New High-Quality OE Match
